Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Screws on trim panel for mirror base Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15237609Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim panel for mirror base
Screws for rear-view mirror housing (lower part) Item 1 Tightening torque 1.4 Nm (1 ftlb.)

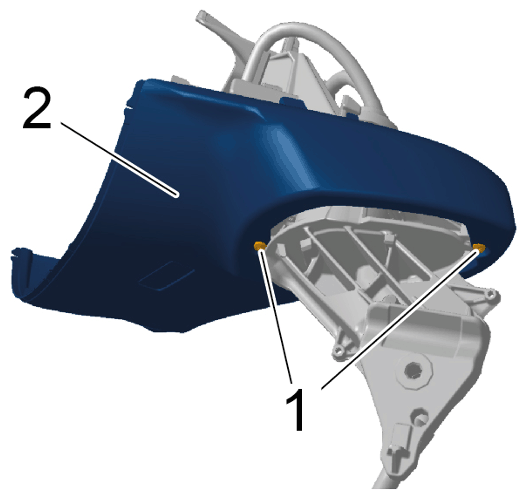

G15237610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear-view mirror housing (lower part)
