Removing Rear-View Mirror Housing (Lower Part)

WARNING: This page is about a different variant/trim than selected.

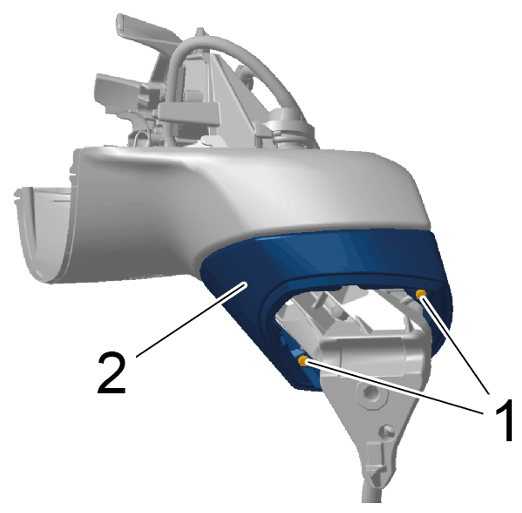

  1. Unscrew screws -1-  on trim panel for mirror base -2-  .
    G15237612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

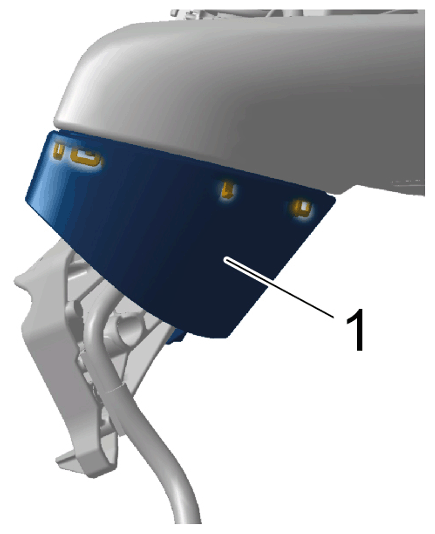

  2. Unclip trim panel for mirror base -1-  and remove it in a downward direction.
    G15237613Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for mirror base

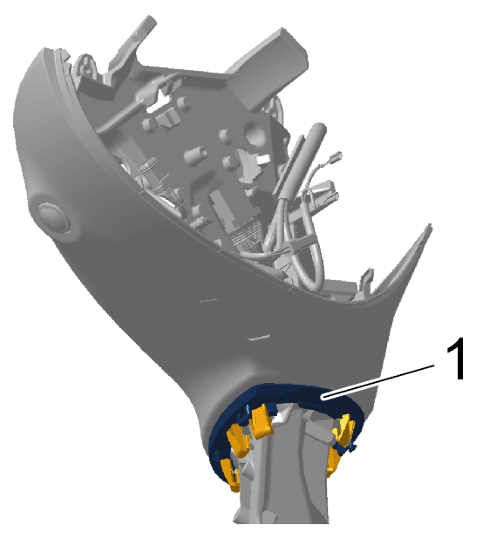

  3. Unclip seal -1-  from mirror base.
    G15237614Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seal

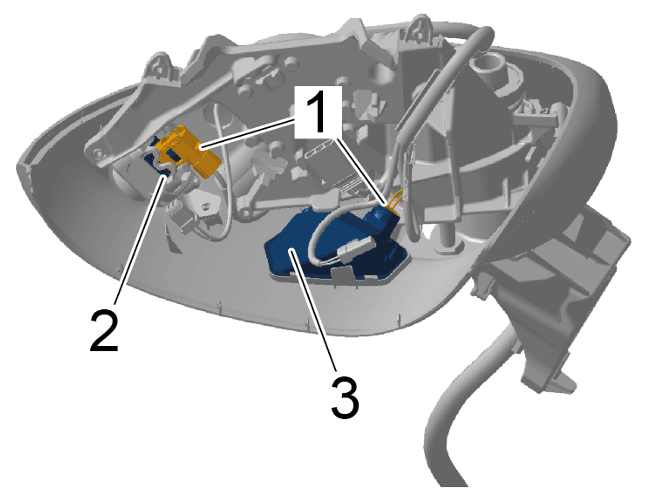

  4. Release and disconnect electric plug connections -1-  on camera -2-  and entry light -3-  .
    G15237615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

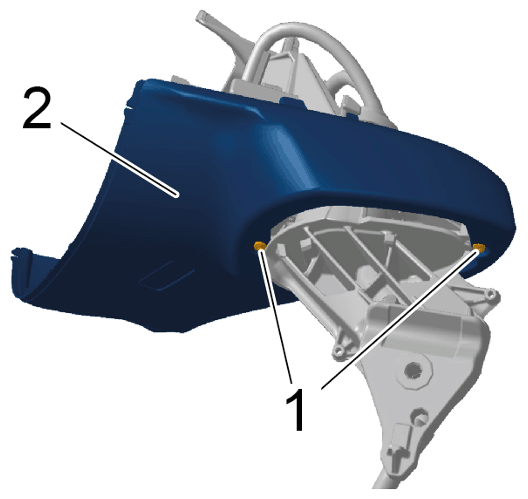

  5. Unscrew and remove screws -1-  .
    G15237616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  6. Remove rear-view mirror housing (lower part) -2-  by pulling it downwards.
    G15237617Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear-view mirror housing (lower part)
