Removing Mirror Glass

WARNING: This page is about a different variant/trim than selected.

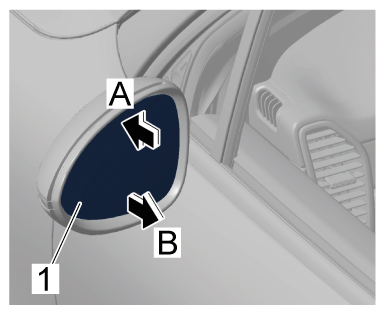

Press the top of the mirror glass -1- inwards -arrow A- and pull it out carefully at the bottom -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mirror glass

Information

The number of electric plug connections can vary, depending on equipment.

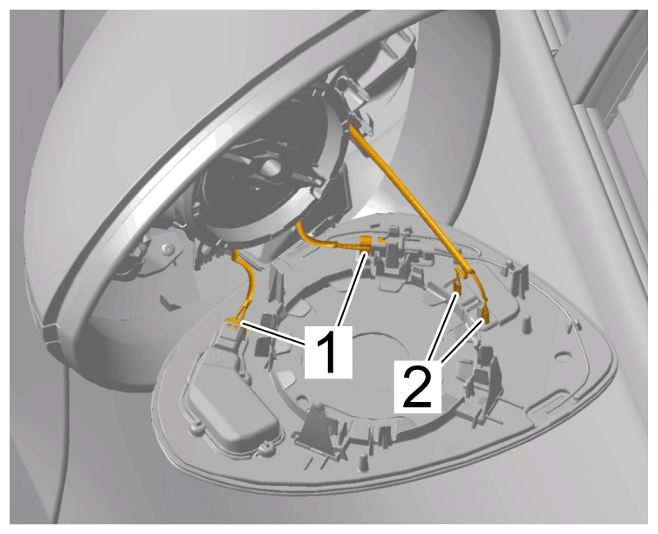

Release and disconnect electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
Disconnect electric lines -2- from mirror glass.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric lines
Remove mirror glass.
