Disassembling Rear Spoiler
WARNING: This page is about a different variant/trim than selected.
- Remove additional brake light.
> 947019 REMOVING AND INSTALLING ADDITIONAL BRAKE LIGHT

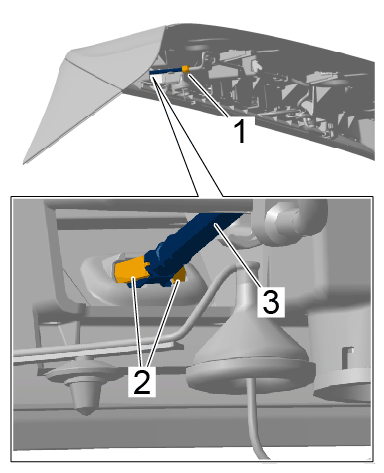

- Release and pull off hose on spray nozzle -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Hose for spray nozzle
- Press retaining lugs -2-
together and remove spray nozzle -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Retaining lugs

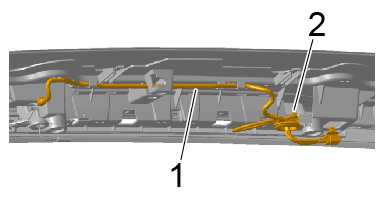

- Unclip window-washer hose -1-
and remove together with wire harness.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Windscreen-washer hose
