Assembling Rear Spoiler

Information

Bonding surfaces must be free of dust and grease.

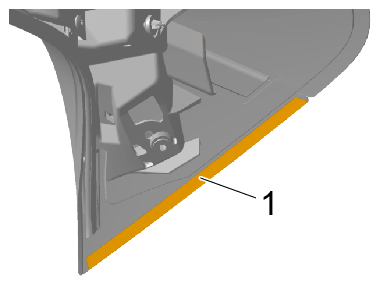

1. Clean bonding surfaces -1-  with isopropanol.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding surfaces

   Information

   Make sure the seals are positioned correctly on the edge/bonding area.

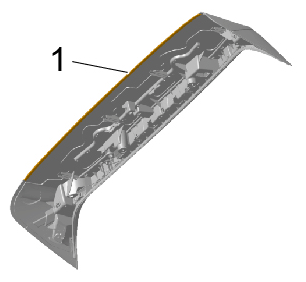

2. Affix seals -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Seals

3. Install additional brake light.

   > 947019 REMOVING AND INSTALLING ADDITIONAL BRAKE LIGHT

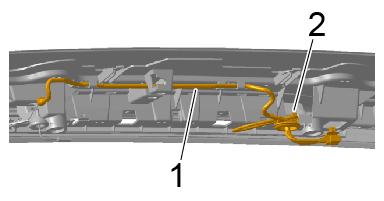

4. Position and clip in window-washer hose -1-  together with the wire harness.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Window-washer hose

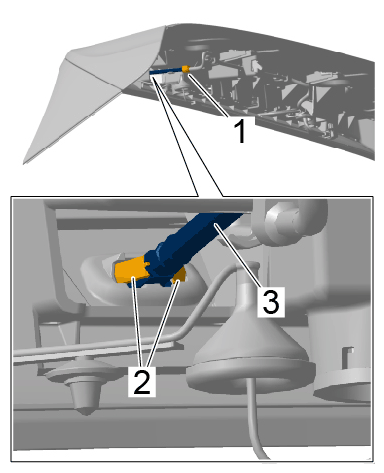

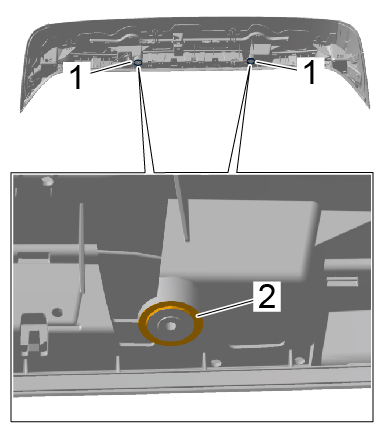

5. Clip in spray nozzle -3-  and make sure the retaining lugs -2-  are seated correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining lugs

6. Insert hose for spray nozzle -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hose for spray nozzle

7. Connect electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Window-washer hose

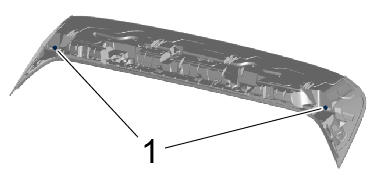

8. Install fixing clips -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixing clips

9. Stick on seal for roof.

   Information

   Bonding surfaces must be free of dust and grease.

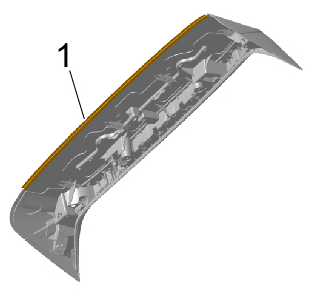

   1. 9.1 Clean bonding surfaces -1-  with isopropanol.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Bonding surfaces

      Information

      Seal must be fitted on the spoiler.

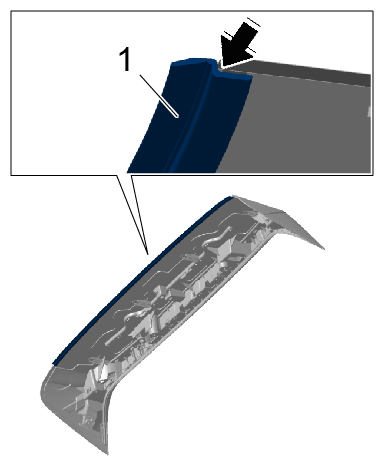

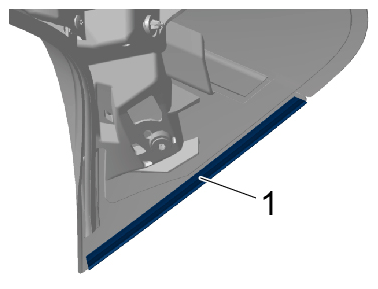

   2. 9.2 Position roof seal -1-  (-arrow-  ).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Roof seal

      Information

      Install at a temperature of +18° to -40° degrees.

   3. 9.3 Pull off protective film -1-  , affix roof seal and press on firmly using a press-on roller.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Protective film

10. Stick on seal for rear window.

    Information

    Bonding surfaces must be free of dust and grease.

    1. 10.1 Clean bonding surfaces -1-  with isopropanol.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Bonding surfaces

       Information

       Seal must be fitted on the spoiler.

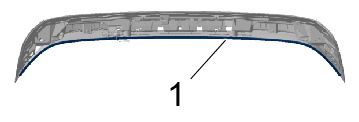

    2. 10.2 Position seal for rear window -1-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Rear window seal

       Information

       Install at a temperature of +18° to -40° degrees.

    3. 10.3 Pull off protective film. Affix rear window seal -1-  and press it on using a press-on roller.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear window seal

11. Stick on side seals.

    Information

    Bonding surfaces must be free of dust and grease.

    1. 11.1 Clean bonding surfaces -1-  with isopropanol.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Bonding surface

       Information

       Seal must be fitted on the spoiler.

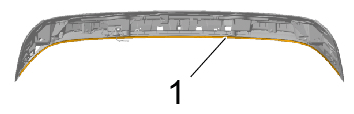

    2. 11.2 Position side seal -1-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Side seal

       Information

       Install at a temperature of +18° to -40° degrees.

    3. 11.3 Pull off protective film. Affix side seal -1-  and press it on using a press-on roller.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Side seal
