Removing Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

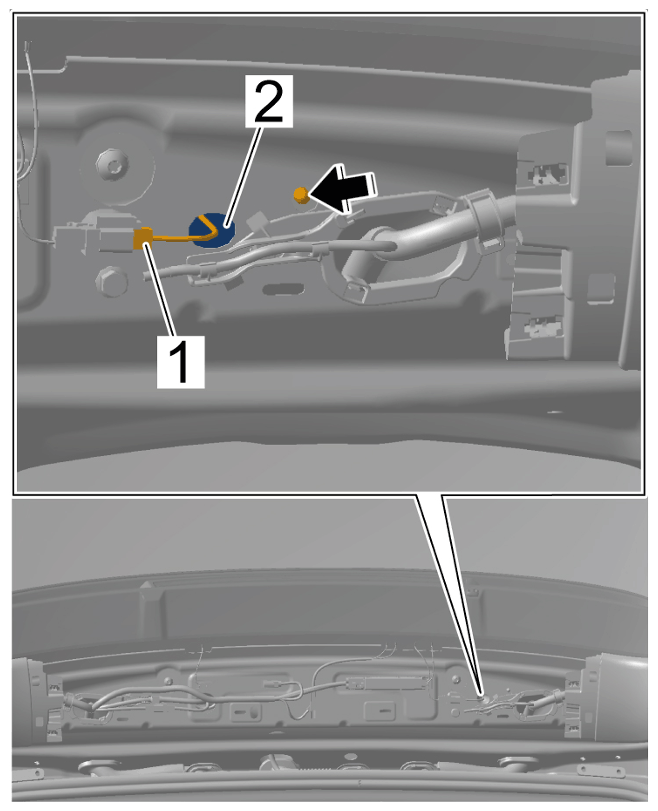

Electric plug connection for antenna cable

1. 1.1 Release and disconnect electric plug connection -1-  for the antenna cable.
2. 1.2 Press rubber sleeve -2-  through.
3. 1.3 Push clip for antenna cable through -Arrow-  .

Information

Collect emerging water using a suitable container and close off the ends of the hose using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

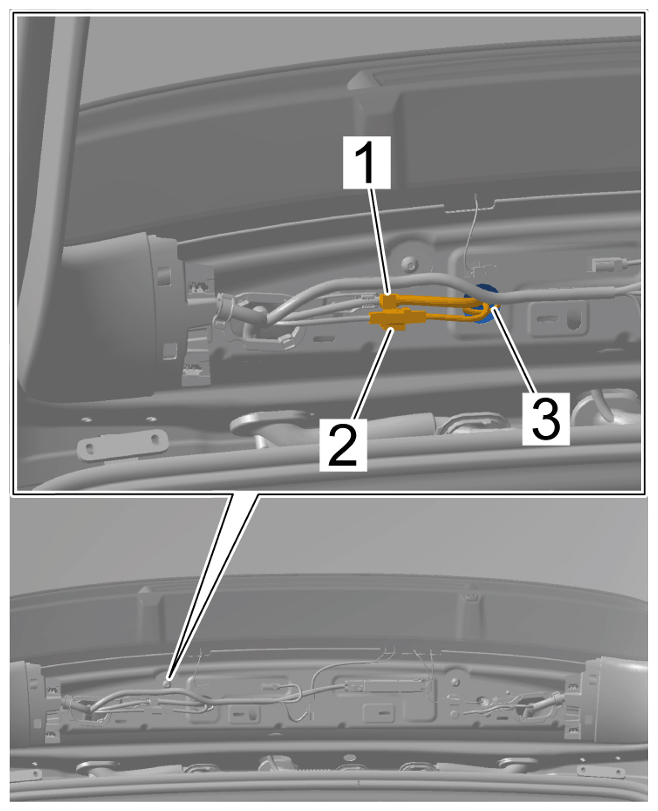

Hose for spray nozzle

1. 2.1 Release and pull off hose on spray nozzle -1-  .
2. 2.2 Release, disconnect and unclip electric plug connection -2-  .
3. 2.3 Press rubber sleeve -3-  through.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Caps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

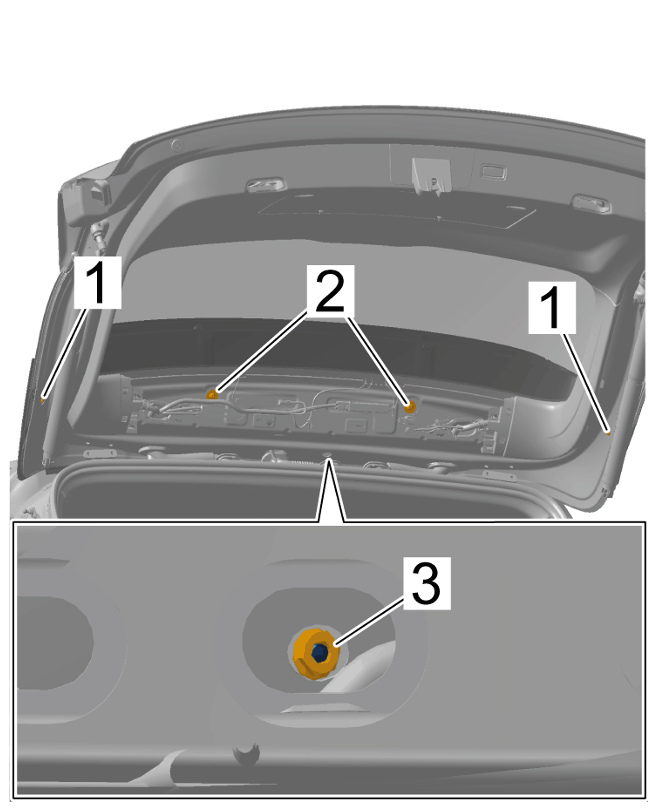

Fastening screws on rear spoiler

1. 4.1 Unscrew fastening screws -1-  .
2. 4.2 Unscrew fastening screws -2-  .
3. 4.3 Screw off fastening nut -3-  .

Information

The help of another person is required.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

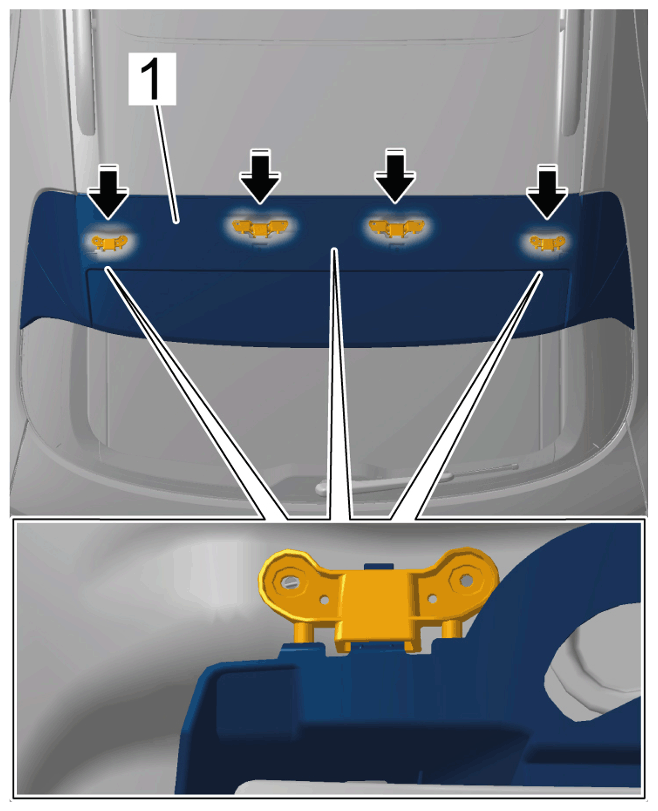

Rear spoiler clips

Only for Cayenne Turbo (A8H) or with Sport Design package:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

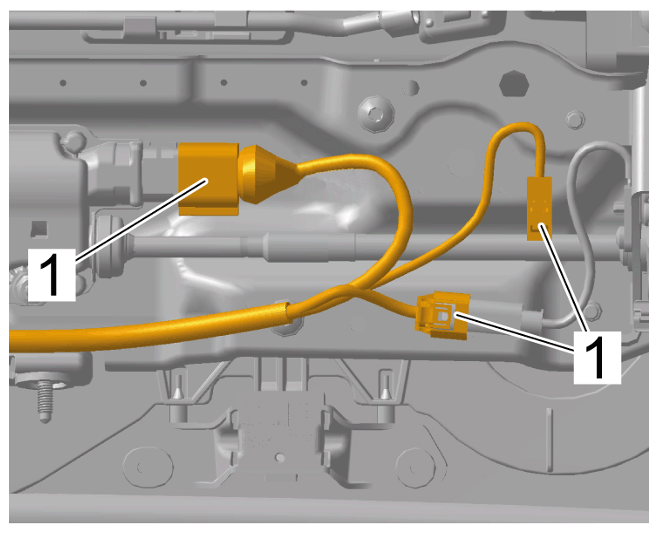

Electric plug connection for drive unit for rear spoiler

Information

The help of another person is required.
