Removing Trim Panel For Lid

WARNING: This page is about a different variant/trim than selected.

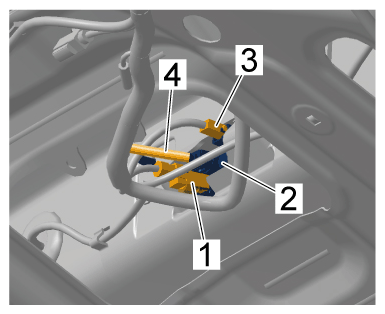

  1. Release and disconnect electric plug connection -3-  on reversing camera.
    G15237535Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on camera

  2. Release and pull off hose on spray nozzle -4-  for reversing camera -2-  .
    G15237536Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose for spray nozzle

  3. Release and disconnect electric plug connection -1-  for lid release.
    G15237537Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for lid release

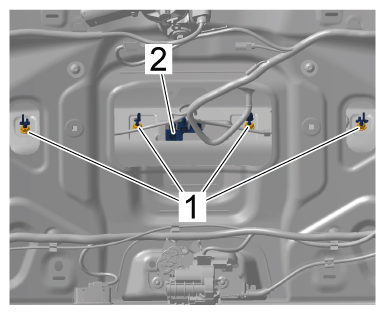

  4. Loosen nuts -1-  .
    G15237538Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts

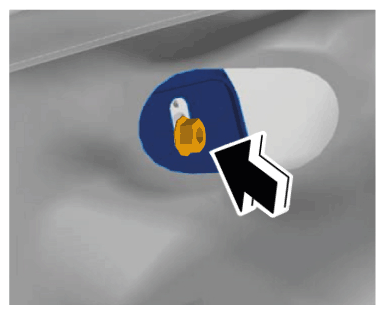

  5. Loosen bonding on the lid trim panel by pressing -Arrow-  against the nuts using a socket wrench.
    G15237539Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Handle strip

  6. Unscrew nuts -1-  on trim panel for lid -2-  .
    G15237540Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts

  7. Remove trim panel for lid.
