Installing Trim Panel For Lid
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Substances hazardous to health
- Risk of serious eye irritation .
- Irritation to respiratory system .
- Sensitization as a result of skin contact
.
- → Read label before use.
- → Wear personal protective gear.
- → Avoid contact with the eyes and skin.
- → Ventilate the work area well.
- → Never ingest or inhale.
- → Do not smoke, eat or drink in the work area.
Information
Bonding on handle strip
- Always replace bonding on trim panel for lid .
- Remove adhesive residue .
- Clean bonding area with isopropanol .
- Installation is performed in reverse order. Pay particular attention to the following:

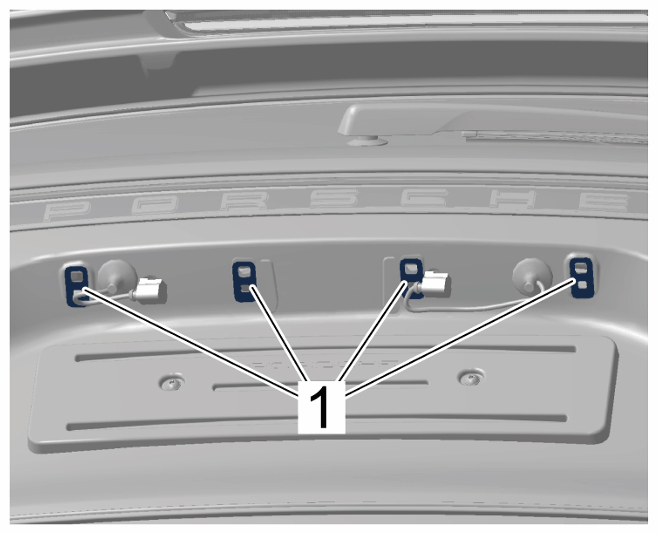

Apply medium-strength screw locking agent (e.g. Loctite 242) and tighten nuts to > Tightening torque 6 Nm (4.5 ftlb.) .
