Removing Rear Wheel Cover (Sport Design)

Information

Wheel arch trims (Sport Design) cannot be removed without irreparable damage and therefore must always be replaced.

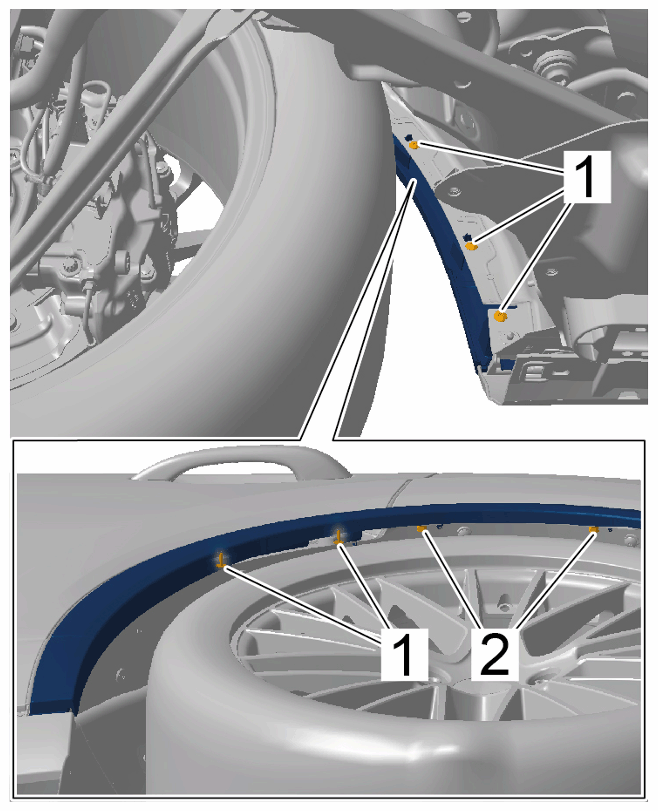

1. Unscrew screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

2. Unscrew nuts -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Nuts

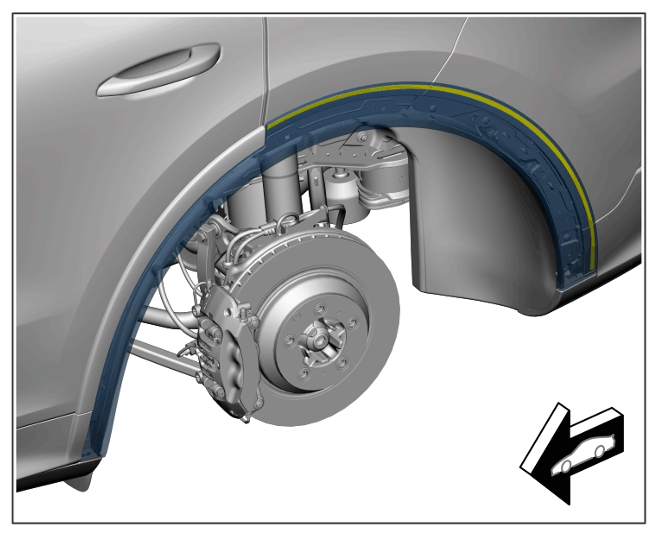

3. Heat strips of adhesive tape in the marked area using a > V.A.G 1416 - hot-air blower  and carefully loosen rear wheel cover (Sport Design) from below using a plastic wedge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adhesive tape

4. Remove rear wheel cover (Sport Design) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear wheel cover (Sport Design)

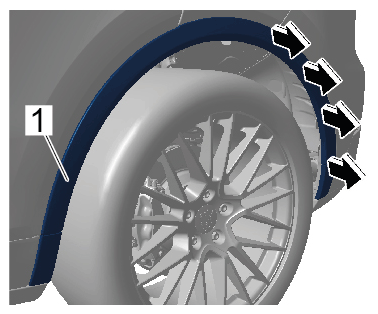

   1. 4.1 Unclip rear wheel cover (Sport Design) -1-  evenly all the way around using a plastic wedge.
   2. 4.2 Remove rear wheel cover (Sport Design) -1-  upwards.
