Removing Rear Wheel Cover
WARNING: This page is about a different variant/trim than selected.

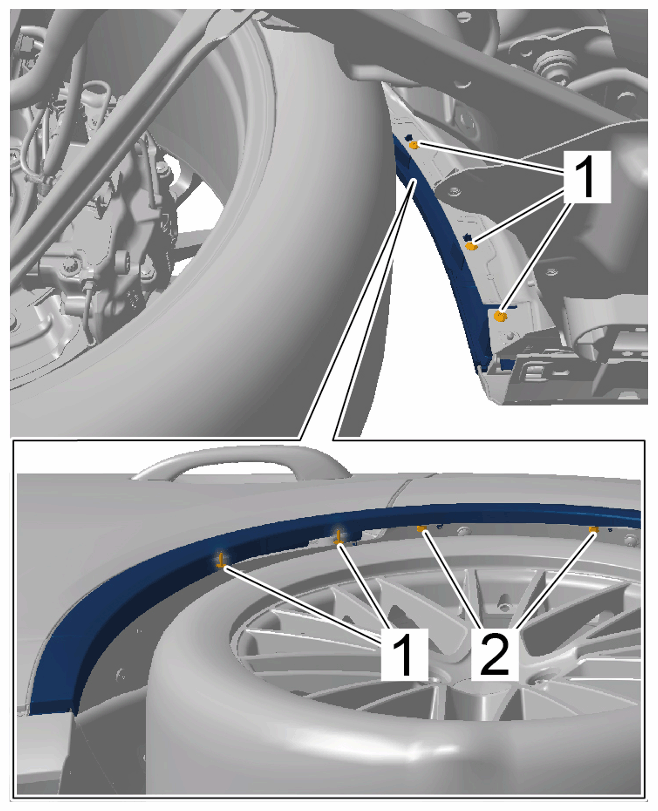

- Unscrew screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws
- Unscrew nuts -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Nuts

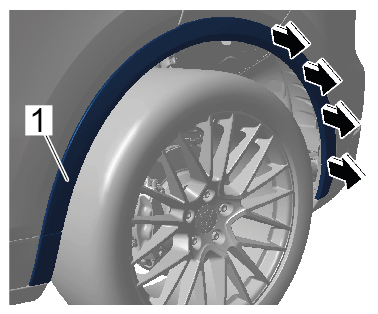

- Remove rear wheel cover -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear wheel cover
- 3.1 Unclip rear wheel cover -1-
from the body evenly all the way around using an assembly wedge.
- 3.2 Pull rear wheel cover -1-
up and off.
