Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

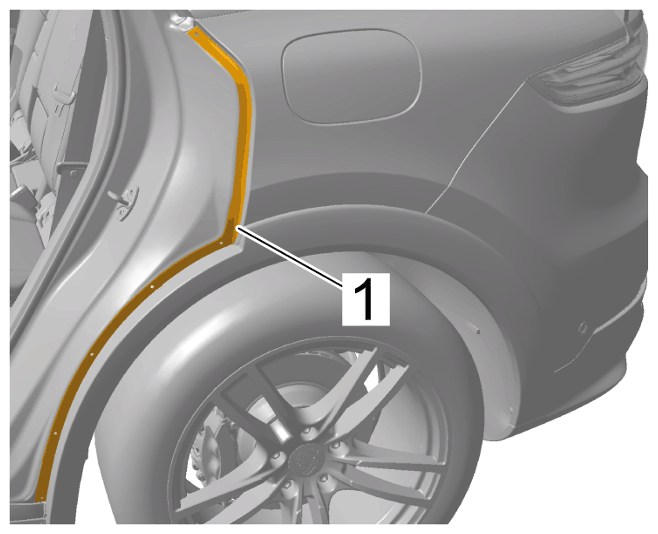

Contact force on bonding area		Contact force	50 N
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bonding area

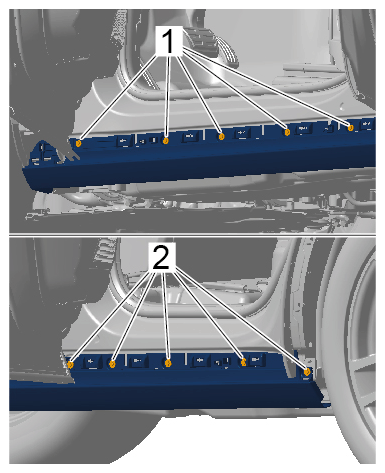

Sill cover to underbody	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on underbody

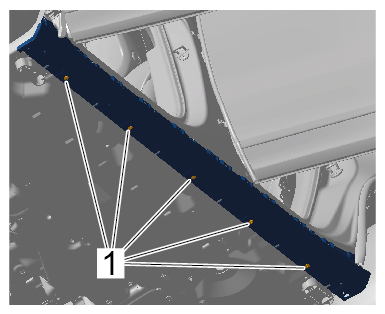

Sill cover to bodyshell	Items 1 and 2	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
