Subsequent Work

Information

To achieve the contact force of 50 N, the torque wrench must be set to 5 Nm (3.5 ftlb.).

1. Hook outer seal for rear door -2-  into the positioning pin -A -  and clip it in from below by pushing it upwards. Press on outer seal for rear door -2-  by applying contact force of at least > Contact force 50 N  using > 9886/1 - press-on roller  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

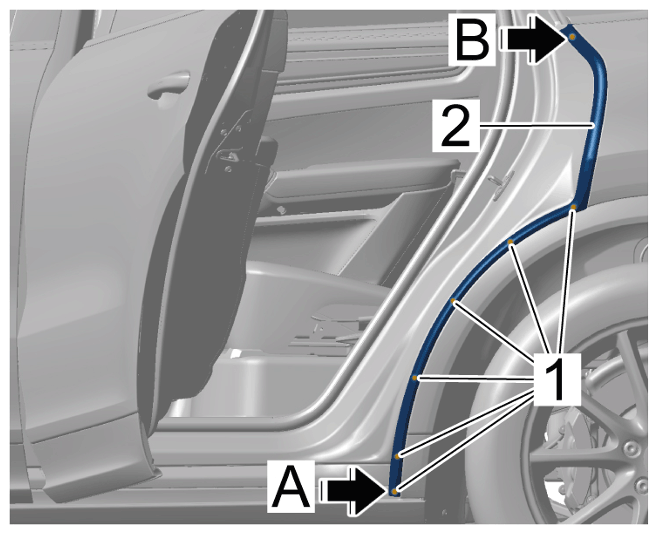

   Outer seal for rear door

2. Install rear wheel cover.

   > 664519 REMOVING AND INSTALLING REAR WHEEL COVER

3. Install front wheel cover.

   > 661919 REMOVING AND INSTALLING FRONT WHEEL COVER
