Removing Front Wheel Cover

WARNING: This page is about a different variant/trim than selected.

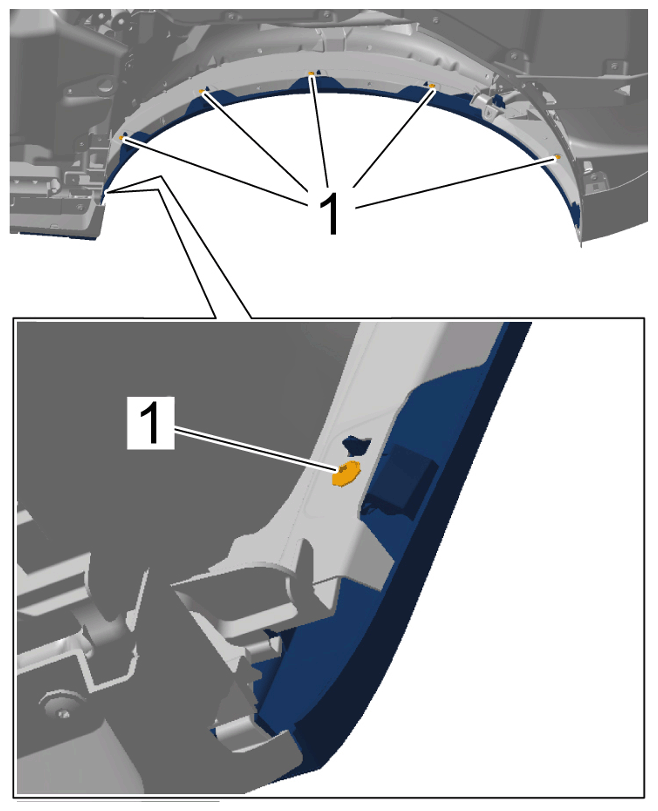

  1. Unscrew screws -1-  .
    G15237481Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  2. Loosen front wheel cover.

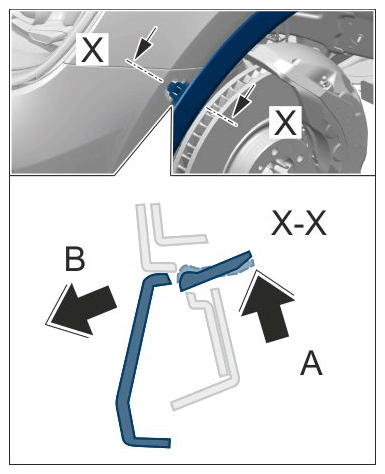

    1. 2.1 Release locking lug -arrow A-  and pull front wheel cover outwards slightly -arrow B-  .
      G15237482Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Locking lug

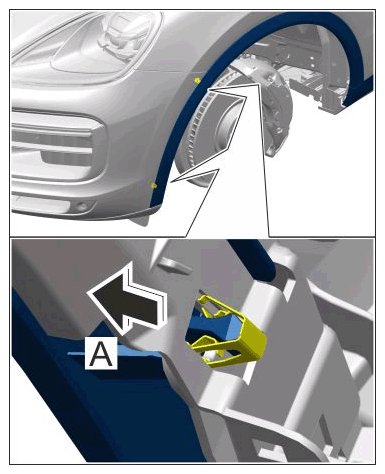

    2. 2.2 Release front wheel cover at the retaining clips using a plastic wedge and pull it out -arrow A-  .
    G15237483Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front wheel cover

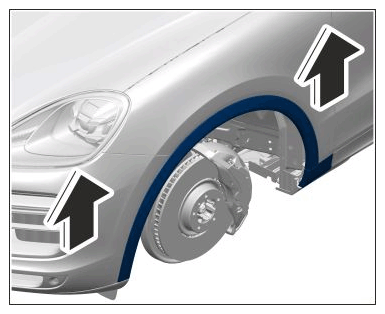

  3. Lift front wheel cover up and remove it.
    G15237484Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front wheel cover
