Removing Radiator Grille (Basic)

WARNING: This page is about a different variant/trim than selected.

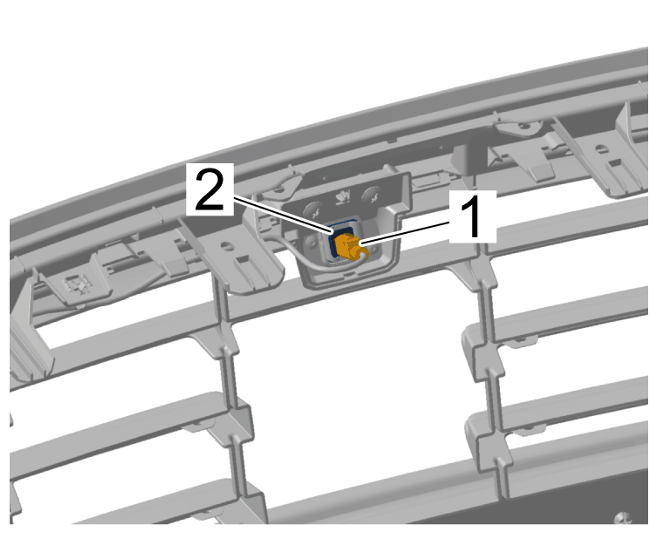

  1. Release and disconnect electric plug connection -1-  on front camera -2-  .
    G15237469Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

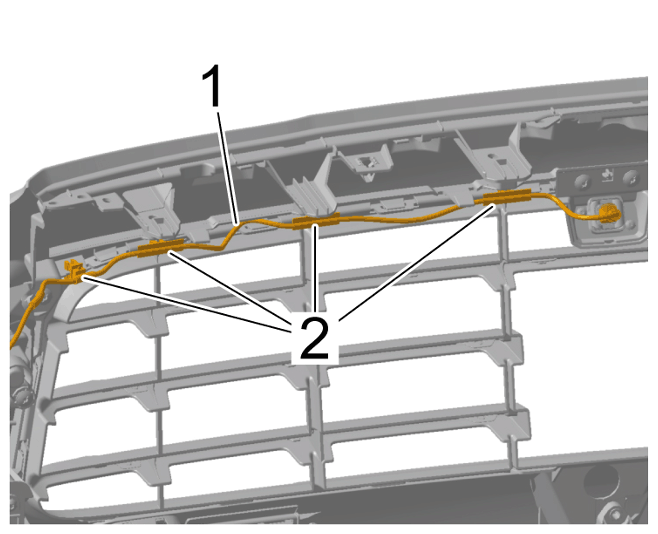

  2. Unclip electric line -1-  with locking lugs -2-  on the radiator grille (basic).
    G15237470Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line

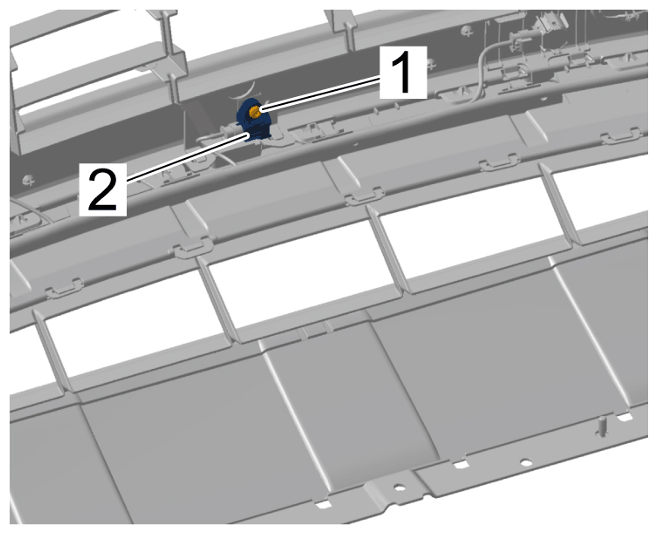

  3. Unscrew screw -1-  and set acceleration sensor -2-  aside with connector connected.
    G15237471Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

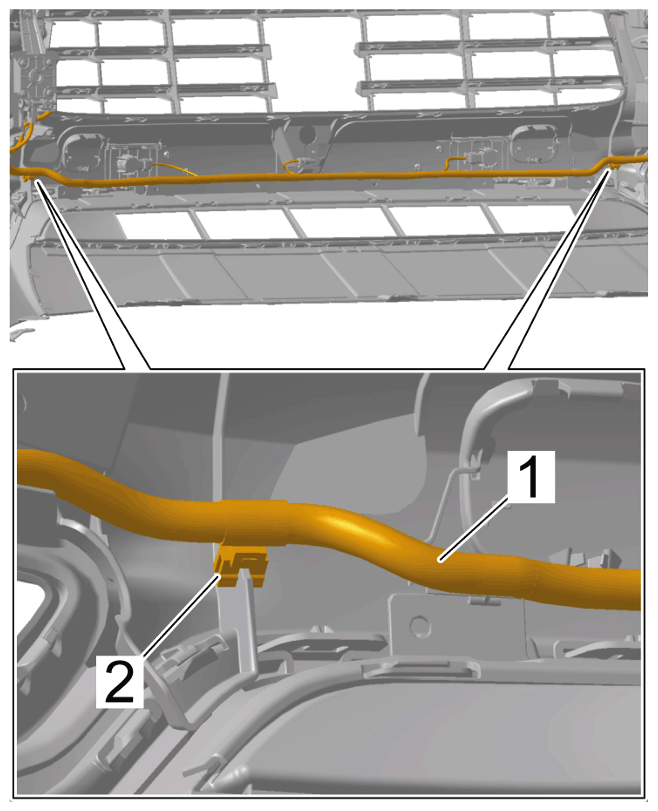

  4. Unclip electric wire harness -1-  from the radiator grille (basic) -2-  .
    G15237472Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

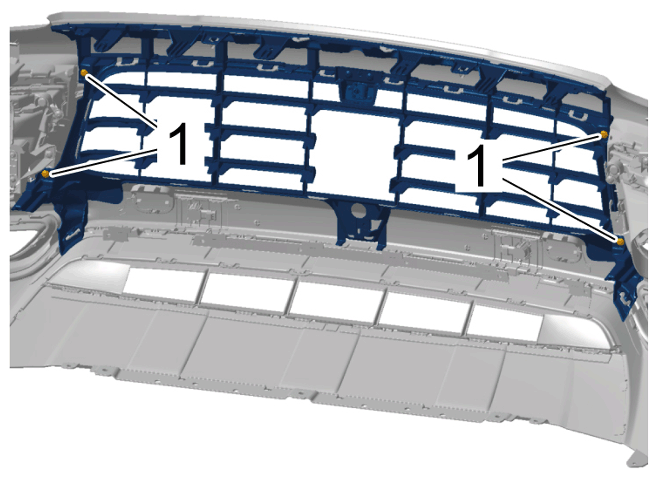

  5. Unscrew and remove screws -1-  .
    G15237473Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

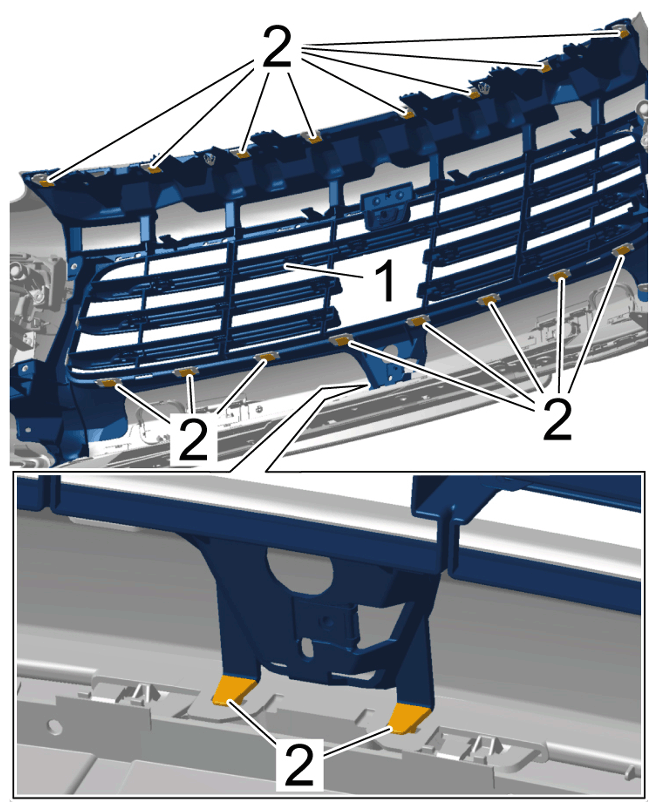

  6. Unclip radiator grille (basic) -1-  at the locking lugs -2-  and remove radiator grille (basic) -1-  .
    G15237474Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lugs

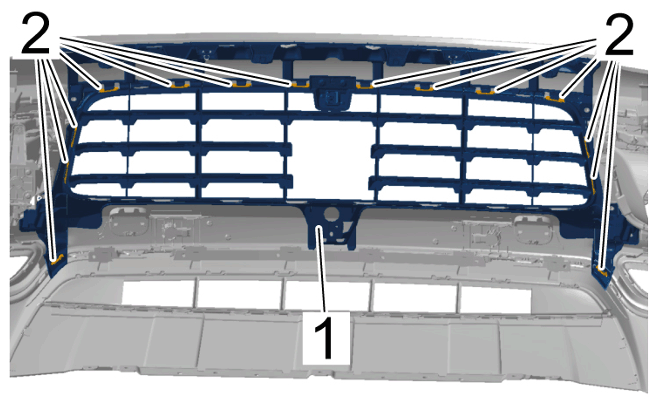

    G15237475Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lugs
