Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Pedestrian protection sensor to front apron Item 1 Tightening torque 6 Nm (4.5 ftlb.)

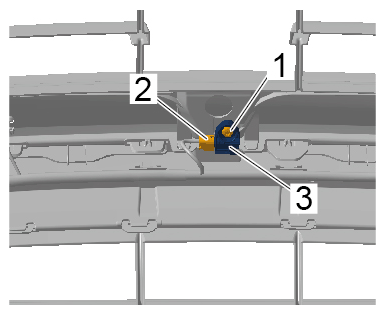

G15237454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pedestrian protection sensor
