Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Clip in side air guide -1-  .

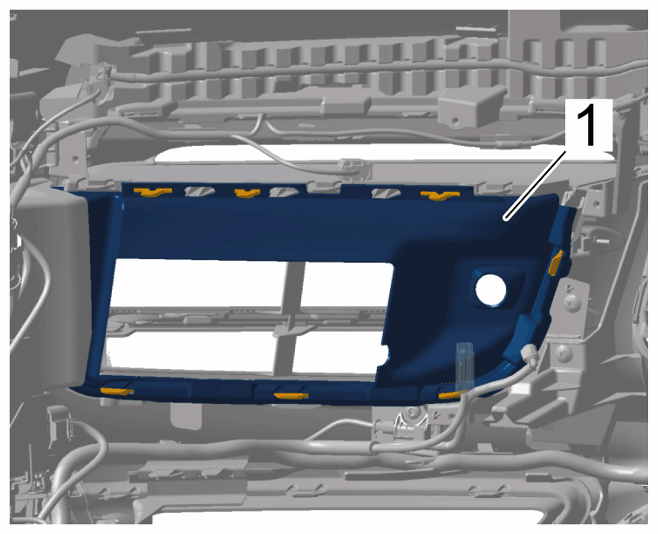

    G15237465Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side air guide

  2. Install radiator grille (basic).

    > 660519 REMOVING AND INSTALLING RADIATOR GRILLE (BASIC)

  3. Install auxiliary headlights.

    > 947119 REMOVING AND INSTALLING AUXILIARY HEADLIGHTS
