Removing Front Air Grille (Basic)

WARNING: This page is about a different variant/trim than selected.

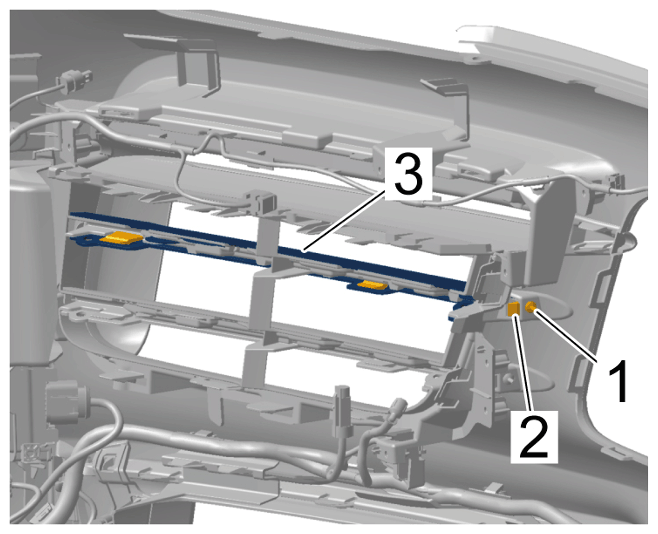

Remove expansion rivet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre vane
Press in retaining lug -2- and unclip centre vane -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre vane

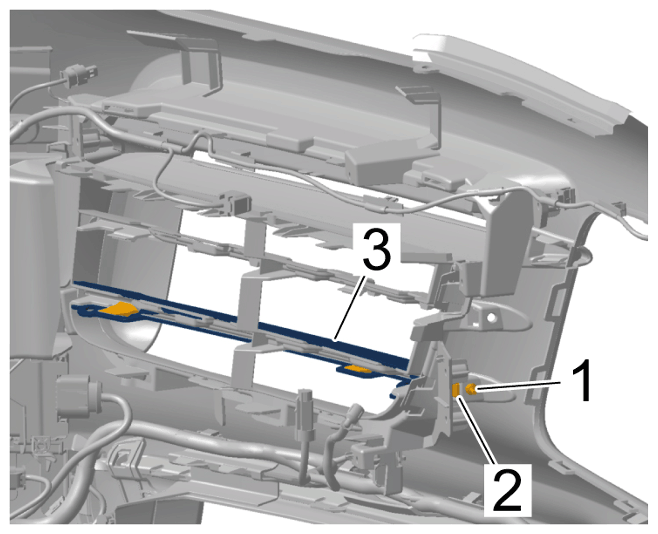

Remove expansion rivet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom vane
Press in retaining lug -2- and unclip bottom vane -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom vane

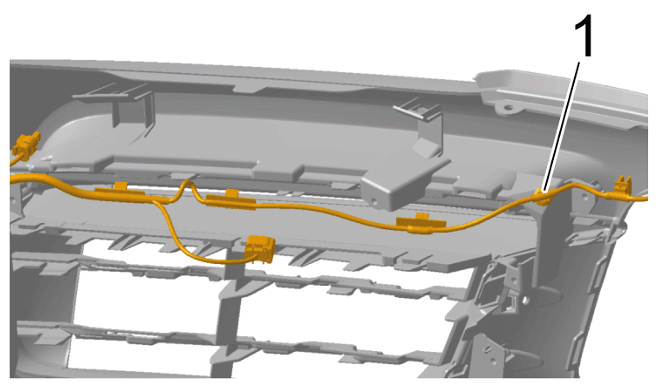

Unclip electric wire harness -1- and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

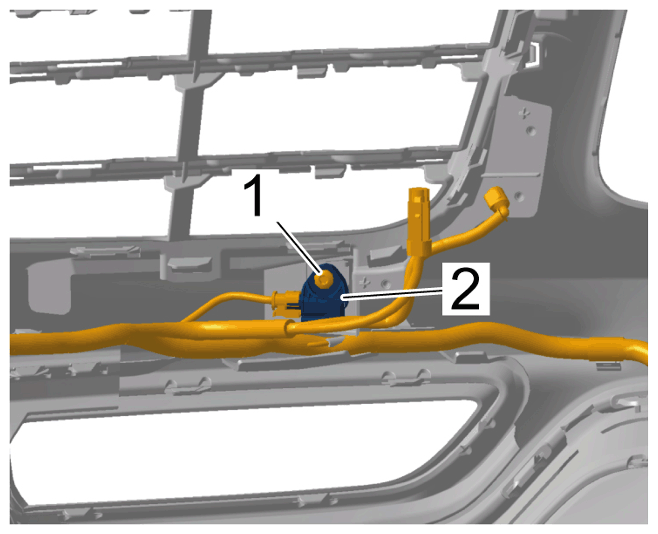

Unscrew screw -1- and set acceleration sensor -2- aside with line connected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Acceleration sensor

Information

To reduce the forces during removal and thereby the risk of damage, the removal steps must be carried out at the accessible connection points using a suitable tool.

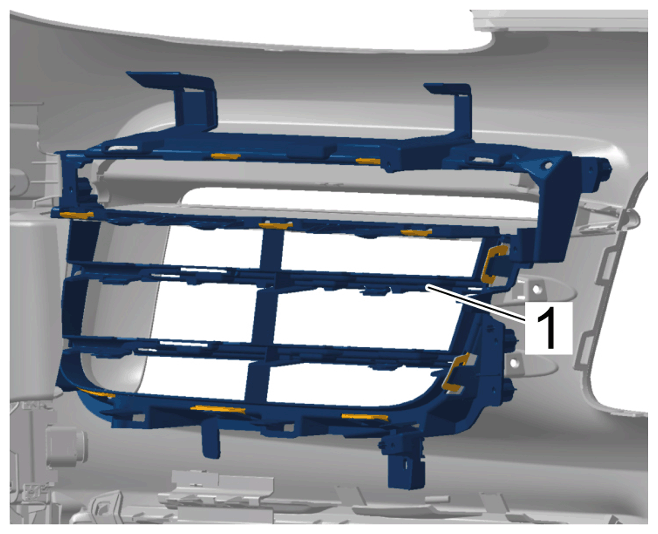

Unclip front air grille (basic) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front air grille (basic)

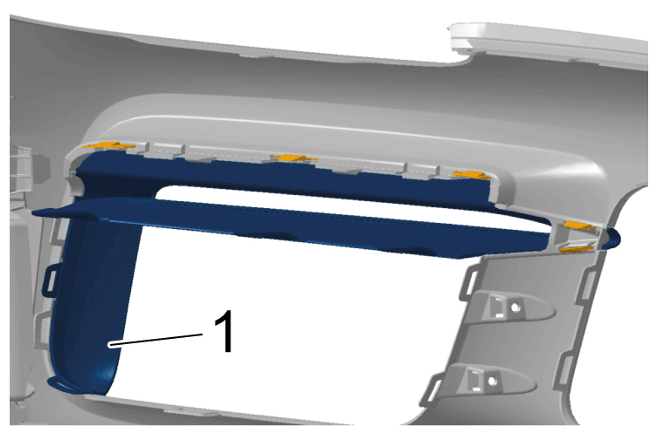

Unclip top vane -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top vane
