Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove auxiliary headlights.

    > 947119 REMOVING AND INSTALLING AUXILIARY HEADLIGHTS

  2. Remove radiator grille (basic).

    > 660519 REMOVING AND INSTALLING RADIATOR GRILLE (BASIC)

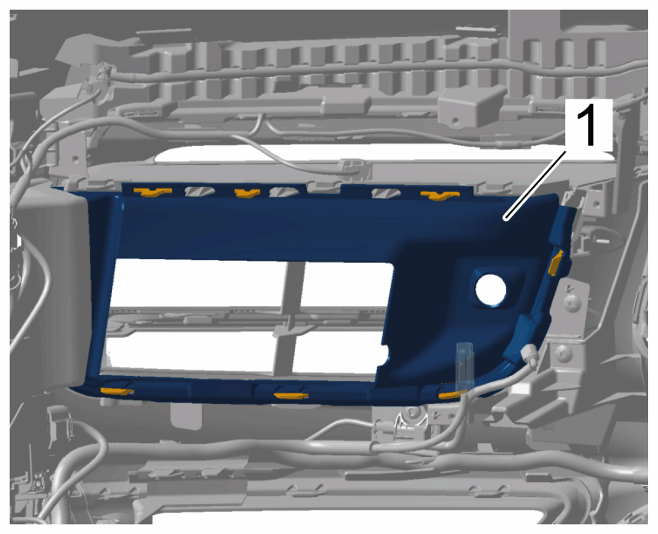

  3. Unclip side air guide -1-  .
    G15237456Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side air guide
