Removing Front Spoiler
WARNING: This page is about a different variant/trim than selected.

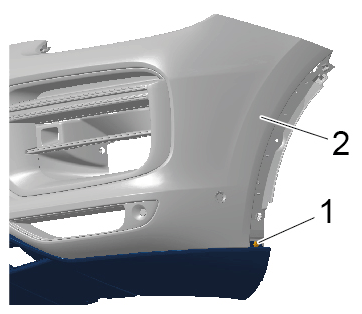

- Unscrew fastening screws -1-
securing front spoiler to front apron -2-
at the sides.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front spoiler

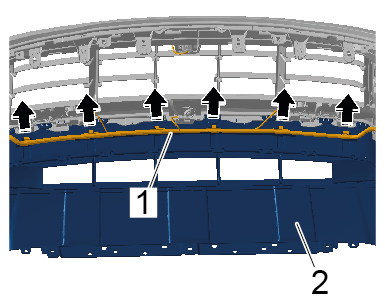

- Unclip electric wire harness -1-
from front spoiler -2-
(-Arrows-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric wire harness
- Remove front spoiler -1-
from front apron.
- 3.1 Keep the front apron tensioned towards the rear.

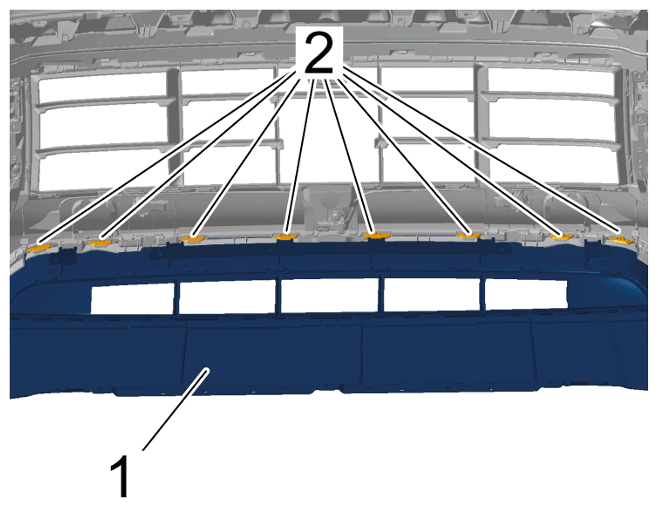

- 3.2 Disengage the locks -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locks

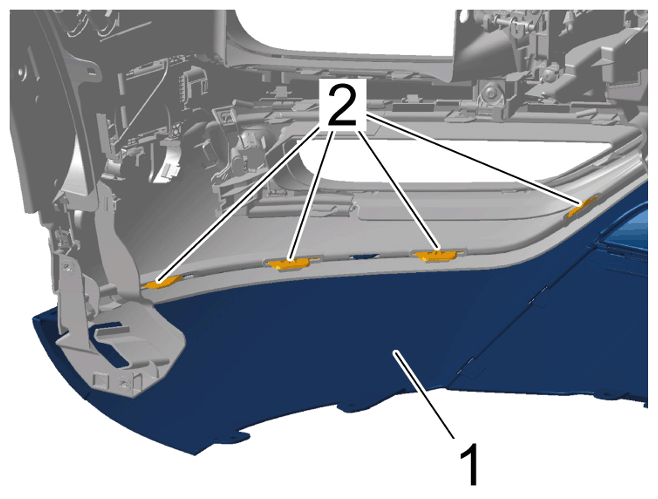

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locks
- 3.3 Remove front spoiler from front apron.
