Section 29 (1X Engine - General 2.9L -- 9YA - Cayenne (9YA))
>>
WM, 1X00IN Technical Values (V6 Turbo)
>>
Service Information 19 - Engine - Cooling
>>
Vent Line
Vent Line
WARNING:
This page is about a different variant/trim than selected.

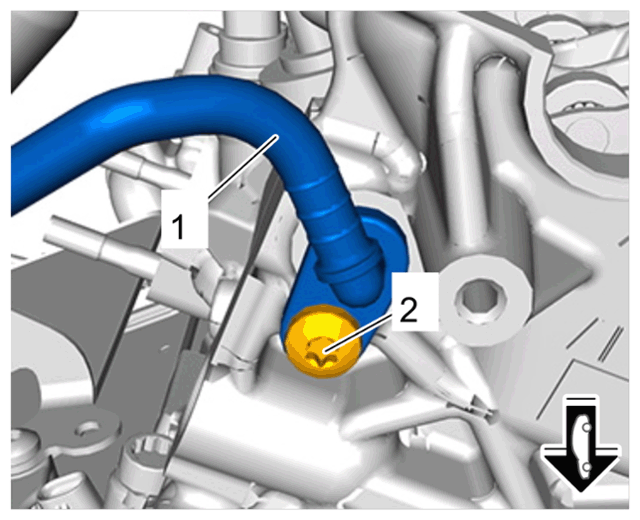

Fig 1: Vent Line Components Location With Torque Specification
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Vent line
1
Vent line
2
>
Tightening torque 9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
