Radiator And Add-On Parts

WARNING: This page is about a different variant/trim than selected.

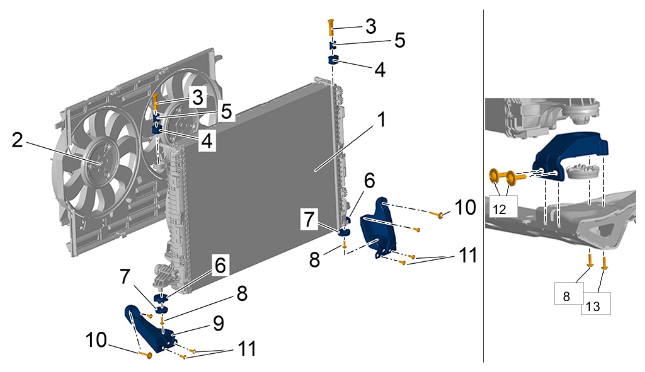

Fig 1: Radiator Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radiator and add-on parts - V8 Turbo

1	Radiator
2	Radiator frame (only available together with electric fan)
3	Clamp
4	Upper radiator mounting
5	Bearing sleeve
6	Lower radiator mounting
7	Lower radiator mounting holder
8	Screw. TP7-22 x 1 > Tightening torque 14 Nm (10.5 ftlb.)
9	Lower radiator holder
10	Screw. M6 x 64 > Tightening torque 8 Nm (6 ftlb.)
11	Screw. TP7-22 x 1 > Tightening torque 14 Nm (10.5 ftlb.)
	Off-road variant:
12	Screw. M6 x 25 > Tightening torque 8 Nm (6 ftlb.)
13	Screw. TP6.0x 17.0-Q > Tightening torque 6 Nm (4.5 ftlb.)
