Engine Coolant Pipes - V6 Biturbo

WARNING: This page is about a different variant/trim than selected.

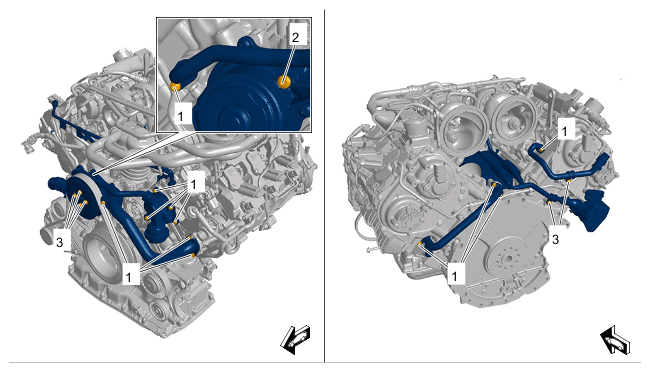

Fig 1: Engine Coolant Pipes Components Location With Torque Specification - V6 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine coolant pipes - V6 biturbo

1 to 3	Screws. M6 x 14 > Tightening torque 9 Nm (6.5 ftlb.)
1 to 3	Screws. M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.)
1 to 3	Screws. M6 x 20 > Tightening torque 9 Nm (6.5 ftlb.)
