Cooling-Air Flaps

WARNING: This page is about a different variant/trim than selected.

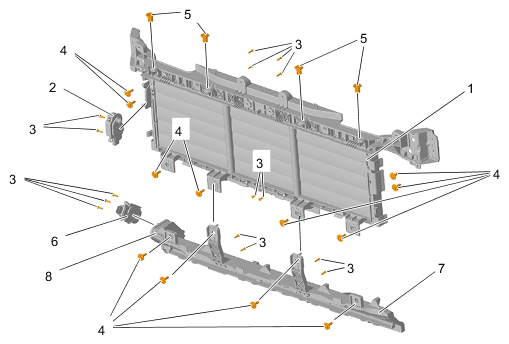

Fig 1: Cooling-Air Flaps Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling-air flaps

1	Cooling-air flaps
2	Motor for cooling-air flaps
3	Screw. TP4 x 16-Q > Tightening torque 2, 5 Nm (1.5 ftlb.)
4	Screw. M6 x 25 > Tightening torque 8 Nm (5.9 ftlb.)
5	Banjo bolt
6	Motor cooling-air flaps, lower
7	Cooling-air flaps, lower
8	Actuator with control arm

Turbo GT only: Lower radiator mounting reinforcement:

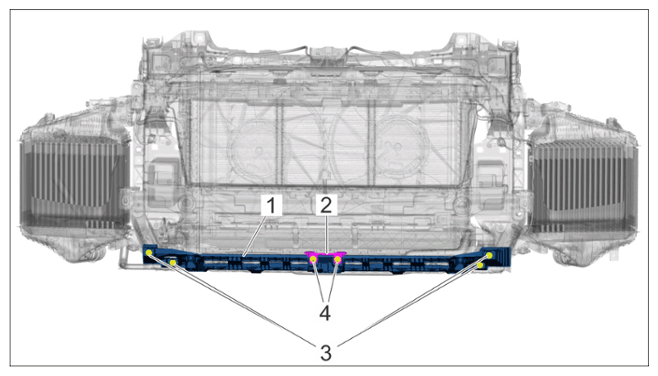

Fig 2: Lower Radiator Mounting Reinforcement Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower radiator mounting reinforcement

1	Lower radiator mounting reinforcement
2	Connecting piece
3	Screw > Tightening torque 6 Nm (4.4 ftlb.)
4	Screw > Tightening torque 6 Nm (4.4 ftlb.)
