Coolant Pump & Tightening Sequence For Coolant Pump

WARNING: This page is about a different variant/trim than selected.

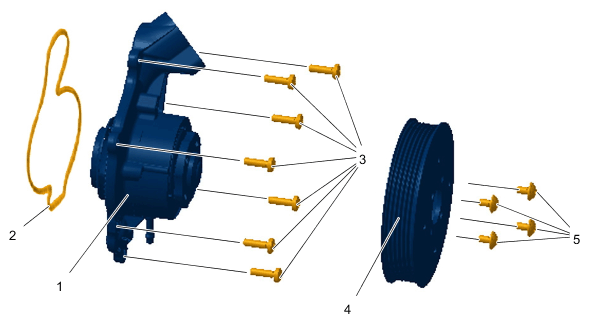

Fig 1: Coolant Pump Components Location With Torque Specification - V6 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump - V6 Turbo

1	Coolant pump
2	Seal/replace
3	Screws, M6 x 20
4	Pulley
5	Screws. M6 x 10 > Tightening torque 9 Nm (6.5 ftlb.)

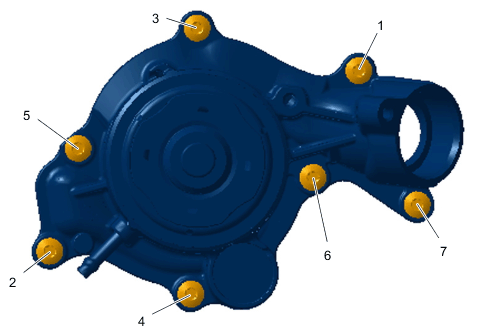

Fig 2: Coolant Pump Screws Tightening Sequence - V6 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for coolant pump - V6 Turbo

1 and 2	Tightening sequence. Step 1 > Initial tightening 9 Nm (6.5 ftlb.)
1 up to 7	Tightening sequence. Step 2 > Final tightening 9 Nm (6.5 ftlb.)
