Coolant Control Valve
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

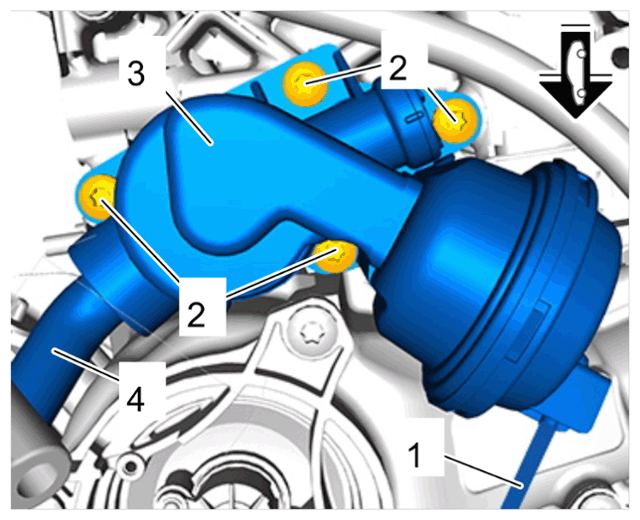

Coolant control valve
| 1 |
Vacuum hose |
| 2 |
Screws > Tightening torque 9 Nm (6.5 ftlb.) |
| 3 |
Coolant control valve |
| 4 |
Coolant pipe |
