Additional Coolant Pump (High-Temperature System P2)
WARNING: This page is about a different variant/trim than selected.

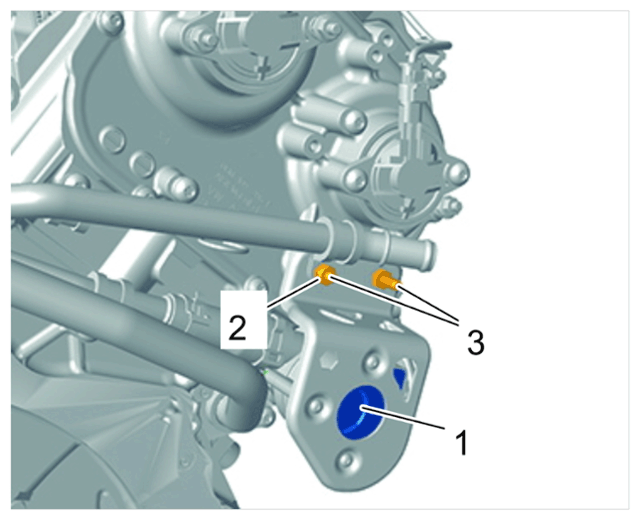

Fig 1: Additional Coolant Pump For High-Temperature System P2 Components Location With Torque Specification
Additional coolant pump for high-temperature system P2
| 1 | Additional coolant pump (high-temperature system P2) |
| 2 | Nut, M6 > Tightening torque 9 Nm (6.6 ftlb.) |
| 3 | Double screw. M6 x 14 > Tightening torque 9 Nm (6.6 ftlb.) |
| Not shown | Screw > Tightening torque 1.5 Nm (1.1 ftlb.) |
