Add-On Parts For Cooling System - V6 Phev

WARNING: This page is about a different variant/trim than selected.

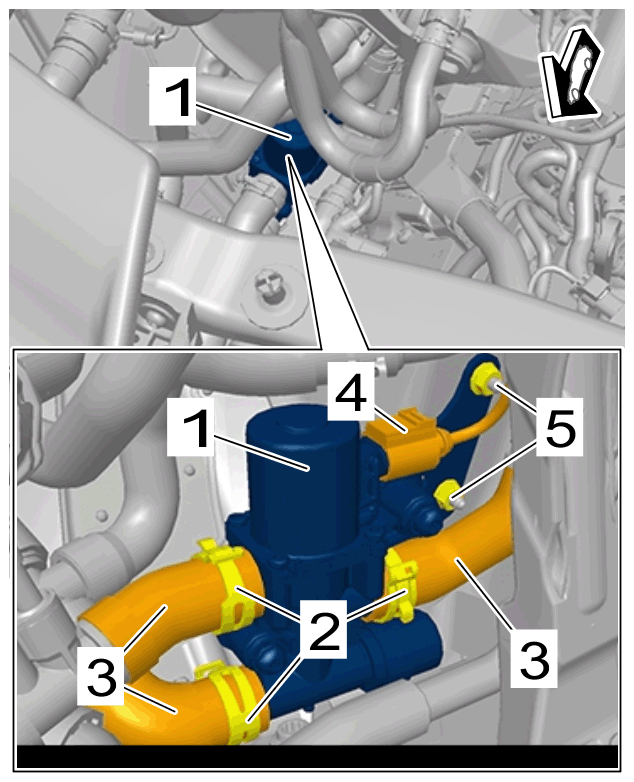

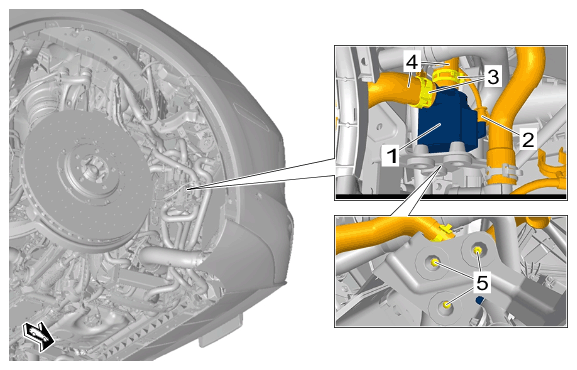

Fig 1: Additional Coolant Pump For High-Temperature System (P5) Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump for high-temperature system (P5)

5	Screws on additional coolant pump for high-temperature system (P5) > Tightening torque 1.5 Nm (1 ftlb.)

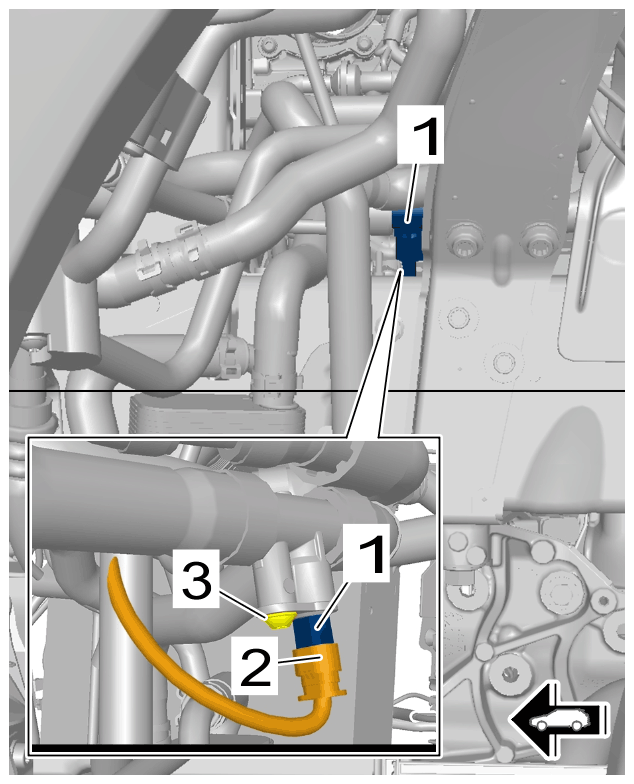

Fig 2: High-Temperature Circuit Temperature Sensor Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-temperature circuit temperature sensor (shown as an example)

3	Screw on high-temperature circuit temperature sensor > Tightening torque 8 Nm (6 ftlb.)

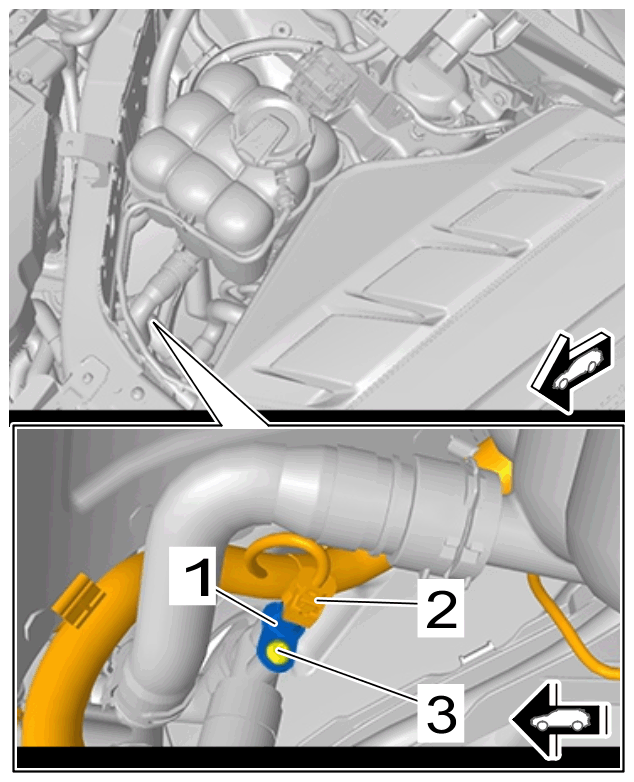

Fig 3: Low-Temperature Circuit Temperature Sensor Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low-temperature circuit temperature sensor (shown as an example)

3	Screw on low-temperature circuit temperature sensor > Tightening torque 8 Nm (6 ftlb.)

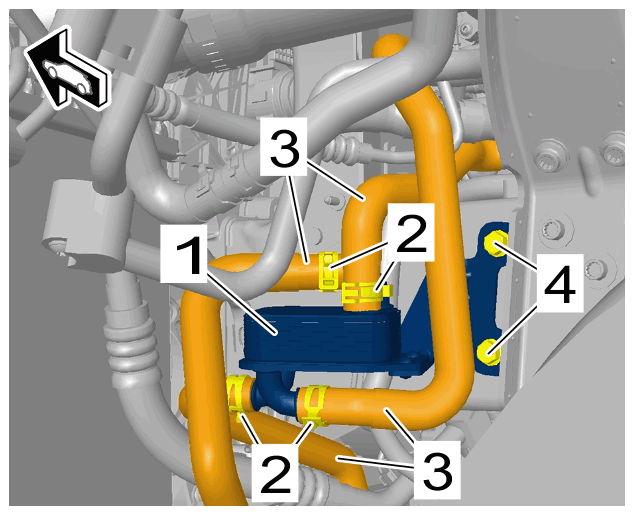

Fig 4: Heat Exchanger For High-Temperature And Low-Temperature Circuit Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat exchanger for high-temperature and low-temperature circuit

4	Screws on heat exchanger for high-temperature and low-temperature circuit > Tightening torque 20 Nm (15 ftlb.)

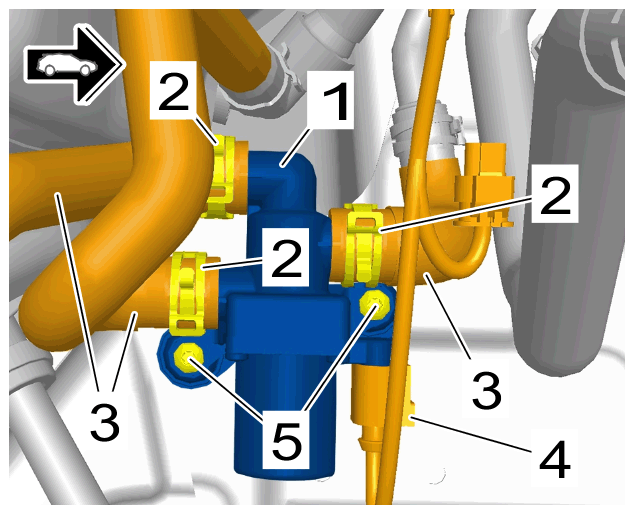

Fig 5: Change-Over Valve For Low-Temperature Circuit (UVW 1) Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Change-over valve for low-temperature circuit (UVW 1)

5	Screws on change-over valve for low-temperature circuit (UVW 1) > Tightening torque 8 Nm (6 ftlb.)

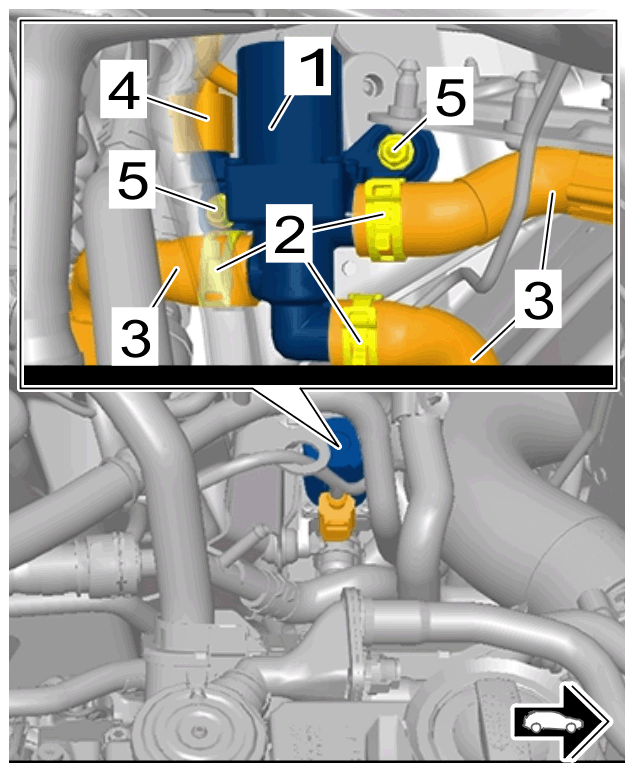

Fig 6: Change-Over Valve For Low-Temperature Circuit (UVW 2) Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Change-over valve for low-temperature circuit (UVW 2)

5	Nuts on chanae-over valve for low-temperature circuit (UVW 2) > Tightening torque 8 Nm (6 ftlb.)

Fig 7: Change-Over Valve For Low-Temperature Circuit (UVW 3) Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Change-over valve for low-temperature circuit (UVW 3)

5	Nuts on change-over valve for low-temperature circuit (UVW 3) > Tightening torque 8 Nm (6 ftlb.)

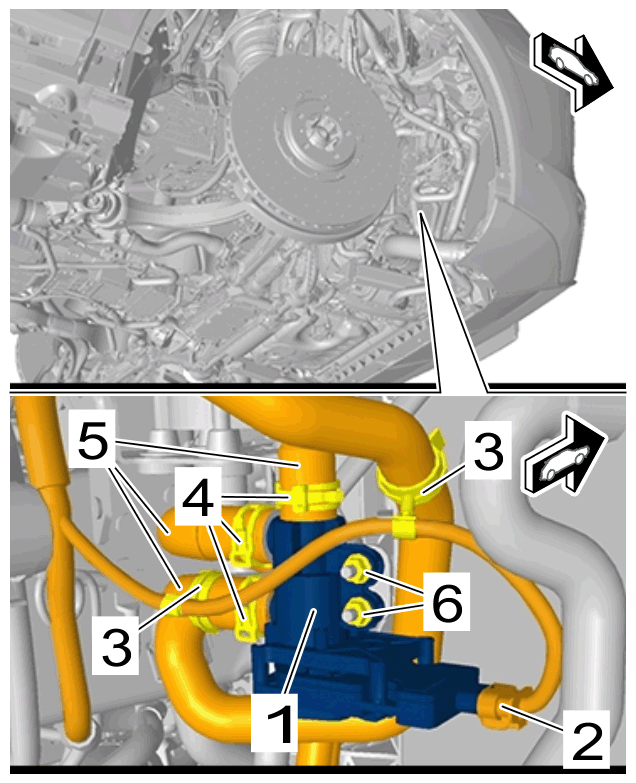

Fig 8: Directional-Control Valve For High-Temperature Circuit (WMV 1) Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Directional-control valve for high-temperature circuit (WMV 1)

6	Nuts on directional-control valve for high-temperature circuit (WMV 1) > Tightening torque 8 Nm (6 ftlb.)

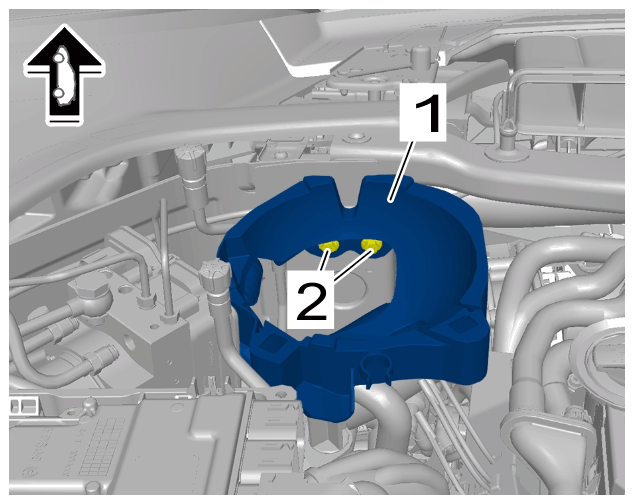

Fig 9: Coolant Reservoir Holder Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant reservoir holder

2	Screws for coolant reservoir holder (low-temperature) > Tightening torque 8 Nm (6 ftlb.)
