Tightening Sequence For Oil Pan

WARNING: This page is about a different variant/trim than selected.

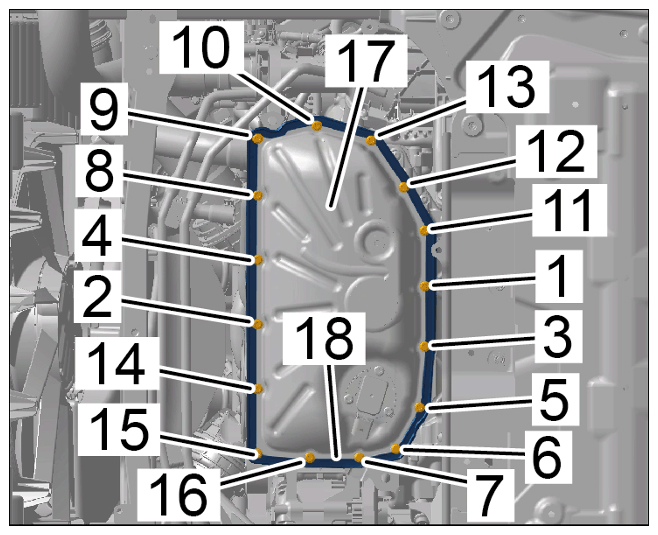

Fig 1: Oil Pan Screws Tightening Sequence
G15211191Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for oil pan

1-16  Tightening sequence for oil pan
17  Oil pan
18  Sealing face
