Section 29 (1X Engine - General 2.9L -- 9YA - Cayenne (9YA))
>>
WM, 1X00IN Technical Values (V6 Turbo)
>>
Service Information 17 - Engine - Lubrication
>>
Tightening Sequence For Oil Guide Housing
Tightening Sequence For Oil Guide Housing
WARNING:
This page is about a different variant/trim than selected.

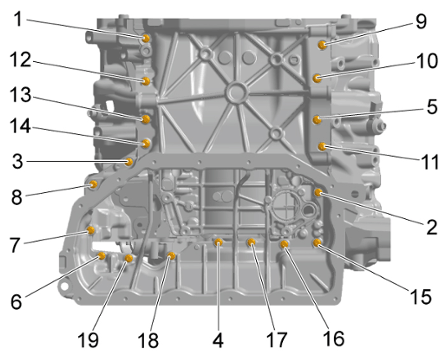

Fig 1: Oil Guide Housing Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tightening sequence for oil guide housing
1-19
Tightening sequence for oil guide housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
