Oil Sensors
WARNING: This page is about a different variant/trim than selected.

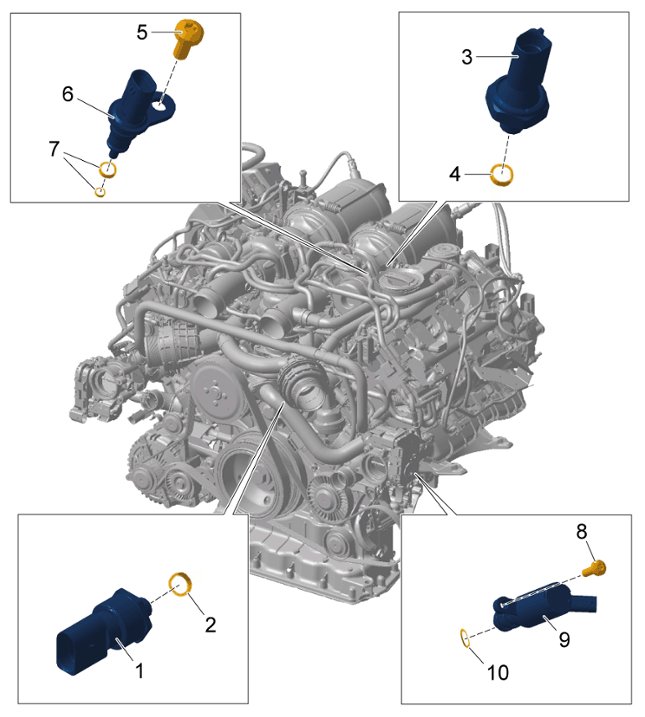

Overview of oil sensors
| 1 | Oil-Dressure sender/replace > Initial tightening 3 Nm (2 ftlb.) > Final tightening+ 45° |
| 2 | Sealing ring/replace |
| 3 | Oil pressure switch > Tightening torque 20 Nm (15 ftlb.) |
| 4 | Sealing ring/replace |
| 5 | Screw. M6 x 18 > Tightening torque 9 Nm (6.5 ftlb.) |
| 6 | Oil temperature sensor |
| 7 | O-ring/replace |
| 8 | Screw. M6 x 18 > Tightening torque 9 Nm (6.5 ftlb.) |
| 9 | Oil pressure control valve |
| 10 | O0-ring /replace |
