Tightening Sequence For Upper Chain Housing Cover On Cylinder Bank 2/Left

WARNING: This page is about a different variant/trim than selected.

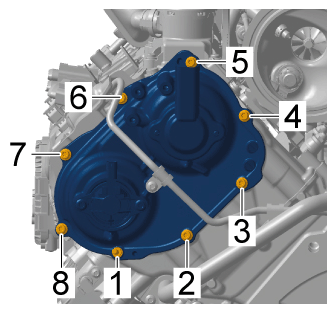

Fig 1: Upper Chain Housing Cover On Cylinder Bank 2/Left Screws Tightening Sequence
G15211165Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for upper chain housing cover on cylinder bank 2/left

1-8  Tightening sequence for upper chain housing cover on cylinder bank 2/left
