Tightening Sequence For Upper Chain Housing Cover On Cylinder Bank 1/Right

WARNING: This page is about a different variant/trim than selected.

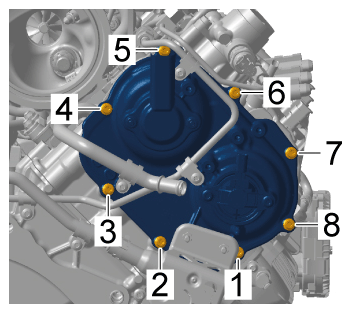

Fig 1: Upper Chain Housing Cover On Cylinder Bank 1/Right Screws Tightening Sequence
G15211164Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for upper chain housing cover on cylinder bank 1/right

1-8  Tightening sequence for upper chain housing cover on cylinder bank 1/right
