Service Information 15 - Engine - Cylinder Head, Valve Drive: Camshafts

WARNING: This page is about a different variant/trim than selected.

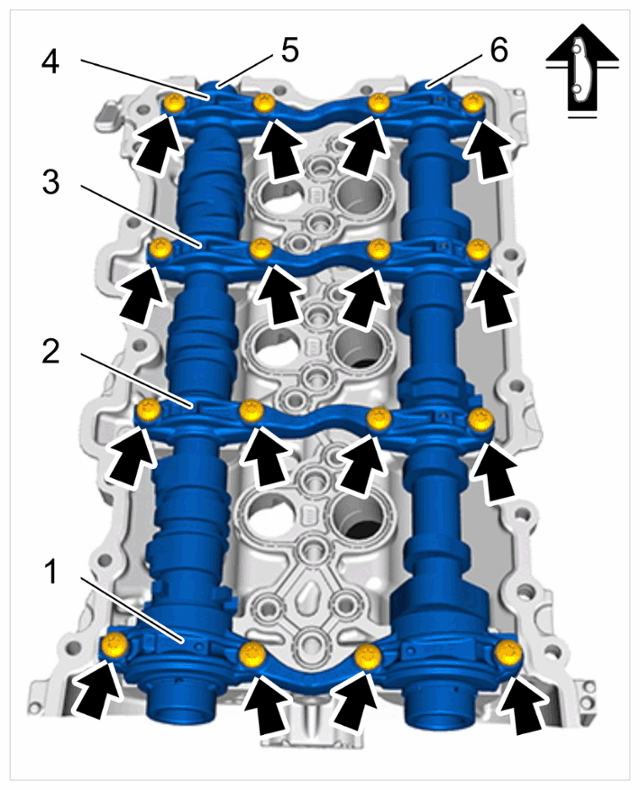

Fig 1: Camshaft Bearing Covers Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Camshaft bearing covers

1 to 4	Camshaft bearing covers
5 and 6	Camshafts
Arrows	Screws for camshaft bearing covers /replace > Tightening torque 9 Nm (6.5 ftlb.)

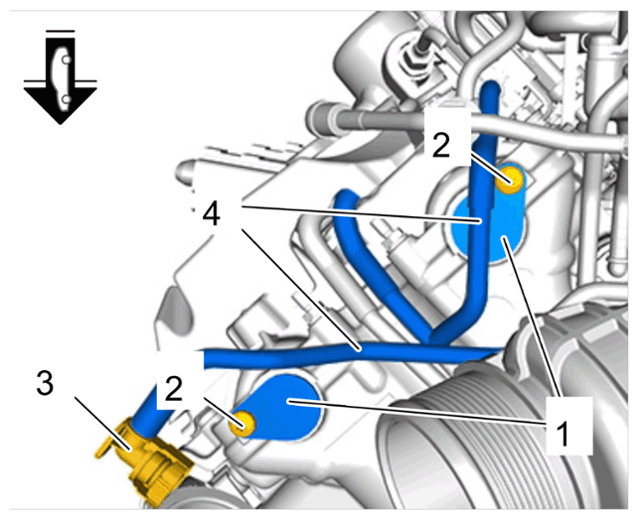

Fig 2: Stoppers On Camshafts Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stoppers on camshafts

1	Stopper on camshaft
2	Screw > Tightening torque 9 Nm (6.5 ftlb.)
