Service Information 13 Engine - Crank Drive, Pistons: Crankshaft

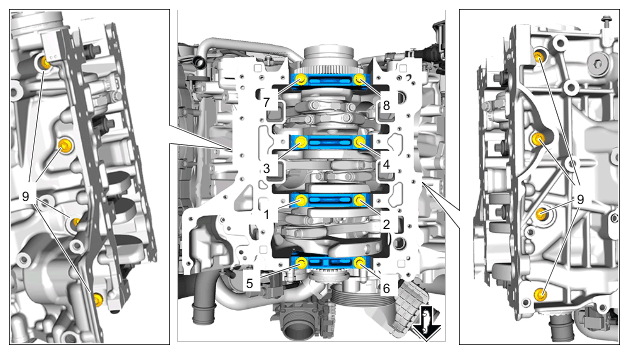

Fig 1: Crankshaft Bearing Covers Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for crankshaft bearing covers

1 to 8	Screws for crankshaft bearing covers /replace > Initial tightening 30 Nm (22 ftlb.)  > Torque angle + 90°
9	Screws for crankshaft bearing covers, side /replace  > Tightening torque 20 Nm (15 ftlb.)  > Torque angle + 90°
