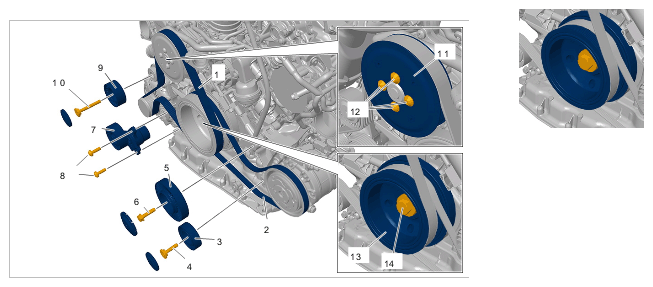

Belt drive - V6 Turbo
| 1 | Belt for generator |
| 2 | Belt for air-conditioning compressor |
| 3 | Deflection roller for air-conditioning compressor |
| 4 | Screw. M8 x 37/replace > Tightening torque 25 Nm (19 ftlb.) |
| 5 | Belt tensioner (air-conditioning compressor) |
| 6 | Screw. M8 x 33 > Tightening torque 25 Nm (19 ftlb.) |
| 7 | Belt tensioner (generator) |
| 8 | Screw. M8 x 25/replace > Initial tightening 8 Nm (6 ftlb.) > Final tightening + 45° |
| 9 | Deflection roller for generator |
| 10 | Screw. M8 x 16.9 x 65 x 50 > Tightening torque 25 Nm (19 ftlb.) |
| 11 | Coolant pump pulley |
| 12 | Screw. M6 > Tightening torque 9 Nm (6.5 ftlb.) |
| 13 | Vibration damper |
| 14 | Screw. M16x 1.5 x 75/replace > Initial tightening 150 Nm (111 ftlb.) > Final tightening 90° |
