Positive Crankcase Ventilation (Pcv Line)

WARNING: This page is about a different variant/trim than selected.

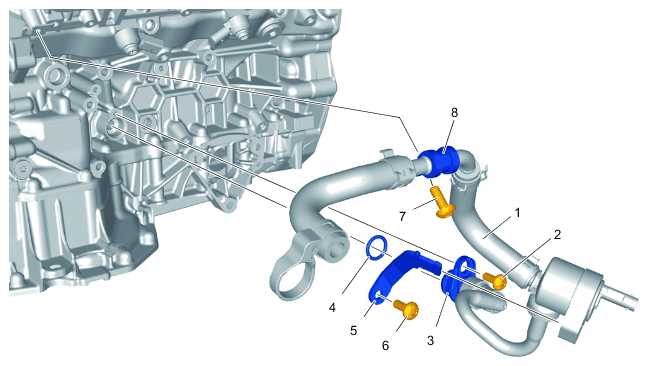

Fig 1: Positive Crankcase Ventilation Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positive crankcase ventilation

1	Positive crankcase ventilation line
2	Screw. M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.)
3	Connection piece incl. check valve
4	O-ring, 17x3/replace
5	Holder
6	Screw. M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.)
7	Screw. M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.)
8	Clip with twist lock
