Engine Mount

WARNING: This page is about a different variant/trim than selected.

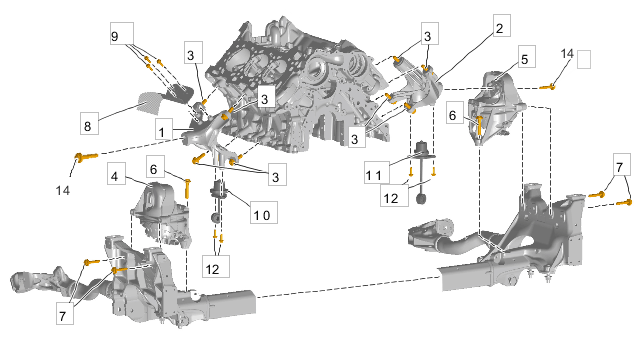

Fig 1: Engine Mount Components Location With Torque Specification - V6 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount - V6 Turbo

1	Right engine carrier
2	Left engine carrier
3	Screws M10x 35 > Tightening torque 55 Nm (40.6 ftlb.)
4	Engine mounting, right
5	Left engine mounting
6	Screws M10x 50 > Torque 55 Nm (40.6 ftlb.)
7	Screws M8 x 50 > Torque 30 Nm (22.1 ftlb.)
8	Shield
9	Screws M6 x 22 > Torque 10 Nm (7.4 ftlb.)
10	Right supporting mount
11	Left supporting mount
12	Screws M6 x 22 > Torque 10 Nm (7.4 ftlb.)
13	Screws M8 x 45 > Torque 20 Nm (14.8 ftlb.)
14	Screws M12 x 1.5 x 70/replace > Initial tightening 90 Nm (66.4 ftlb.) > Final tightening + 90°
