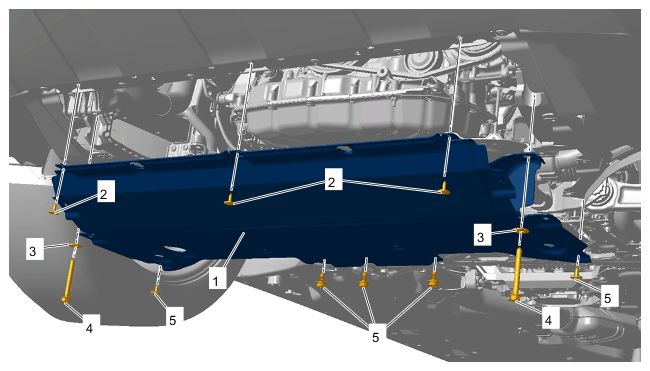

Engine guard
| 1 | Engine guard |
| 2 | Screw. M6 x 16 > Tightening torque 6 Nm (4.5 ftlb.) |
| 3 | Washer, 10.5 x 24 x 2 |
| 4 | Screw. M8 x 70 > Tightening torque 25 Nm (19 ftlb.) |
| 5 | Screw. M8 x 20 > Tightening torque 20 Nm (15 ftlb.) |
