Technical Values: Notes
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

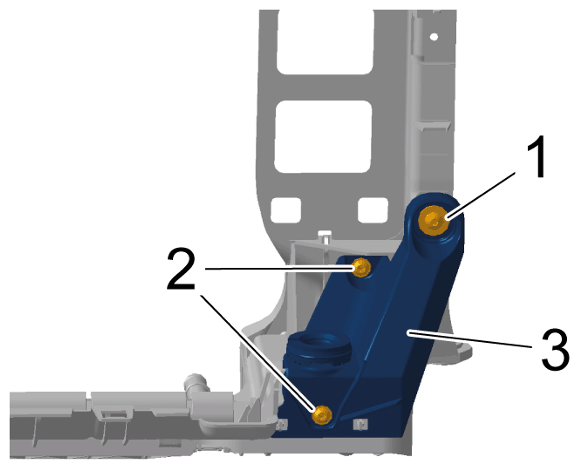

| Screw securing radiator holder to lock support panel | Item 1 | Tightening torque | 8 Nm (5.9 ftlb.) | ||
|
Screw for radiator holder |
|||||
| Lateral screws securing radiator holder to lock support panel | Item 2 | Tightening torque | 8 Nm (5.9 ftlb.) | ||
|
Screws for radiator holder |
