Removing Rear Left Coolant Pipe

WARNING: This page is about a different variant/trim than selected.

Remove rear left -1- coolant pipe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

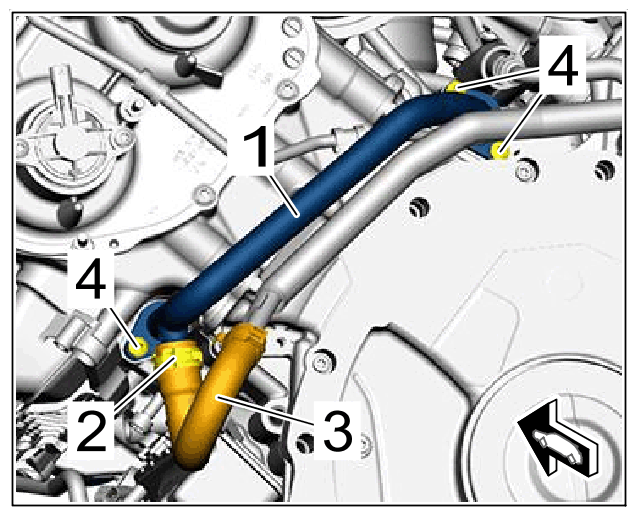

Rear left coolant pipe
1. 1.1 Open spring band clamp -2- using > VAS 6890 - spring band clamp pliers and pull off coolant hose -3- .
2. 1.2 Catch escaping coolant and close off line connections using suitable stoppers.
3. 1.3 -4- Unscrew screws and pull -1- off rear left coolant pipe.
4. 1.4 Catch escaping coolant and close off line connections using suitable stoppers.
