Disconnect Coolant Pipe For Coolant Pump
WARNING: This page is about a different variant/trim than selected.

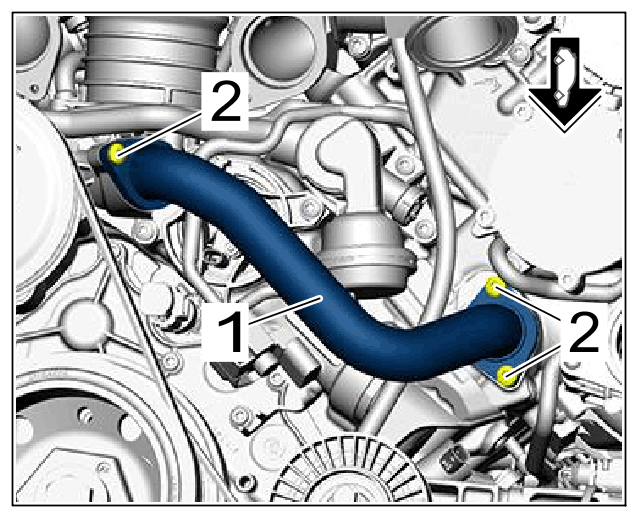

- Disconnect coolant pipe for coolant pump -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant pipe coolant pump
- 1.1
Unscrew screws -2-
.
- 1.2
Disconnect coolant pipe for coolant pump -1-
.
- 1.3
Catch escaping coolant and close off line connections using suitable stoppers.
