Removing Additional Coolant Pump

WARNING: This page is about a different variant/trim than selected.

Disconnect coolant line.

1.1 Unscrew nut -3- .
Information

The following pliers are suitable for loosening and tightening the spring band clamps:
- > VAS 6856 - Spring band clamp pliers
- > VAS 6889 - Spring band clamp pliers
- > VAS 6890 - Spring band clamp pliers
- > VAS 6891 - Spring band clamp pliers
- > VAS 6930 - Spring band clamp pliers
1.2 Loosen damp -2- .
Use a special tool if necessary.

1.3 Move coolant line aside.

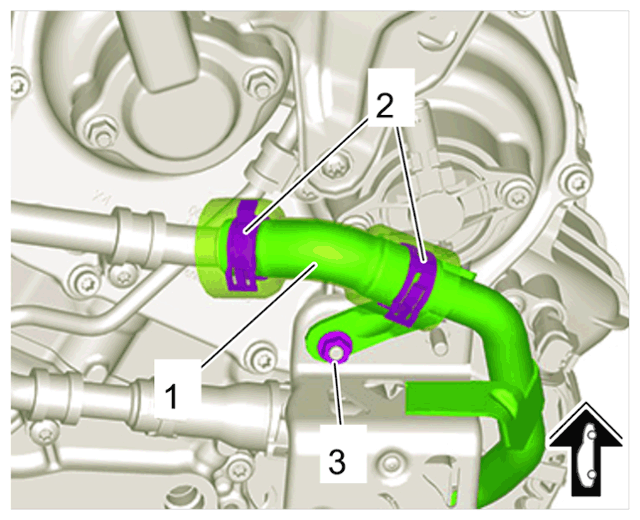

G15211088

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper coolant line

Remove additional coolant pump holder -1- .

2.1 Unscrew screws on additional coolant pump -2-
2.2 Unscrew double screw for additional coolant pump holder -3- .

2.3 Remove additional coolant pump holder -1- .

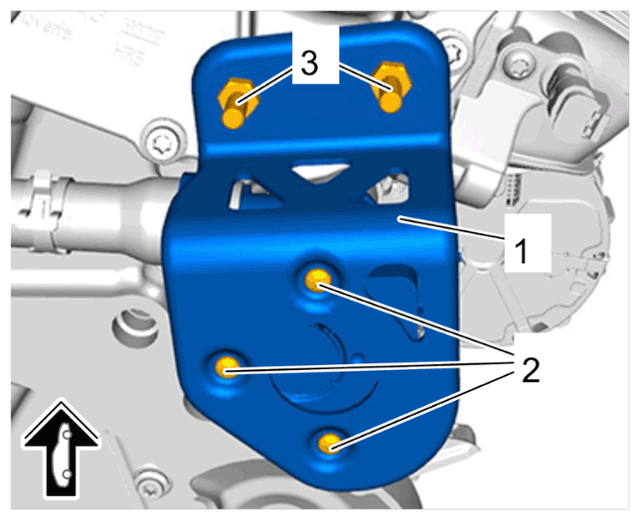

G15211089

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump (right cylinder bank)

Remove additional coolant pump -4- .

3.1 Release and disconnect electric plug connection -1- .
Information

The following pliers are suitable for loosening and tightening the spring band clamps:
- > VAS 6856 - Spring band clamp pliers
- > VAS 6889 - Spring band clamp pliers
- > VAS 6890 - Spring band clamp pliers
- > VAS 6891 - Spring band clamp pliers
- > VAS 6930 - Spring band clamp pliers
3.2 Open clamp -2- .
Use a special tool if necessary.
3.3 Unscrew screw -3- using > T10A05 - socket T30 .

3.4 Remove additional coolant pump -4- .

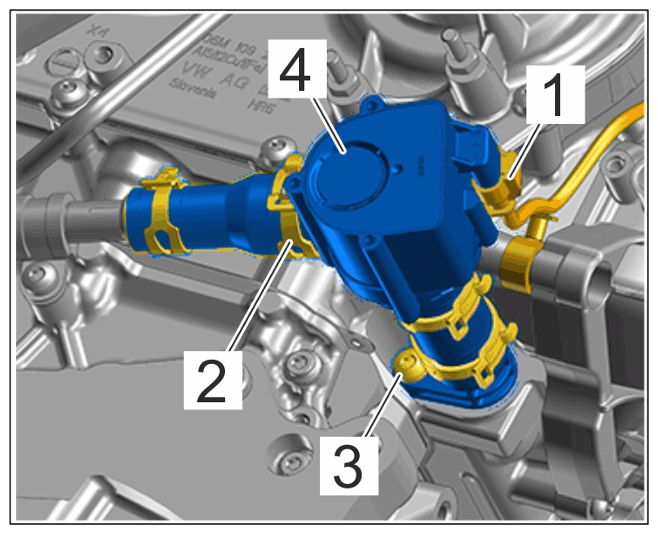

G15211090

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump
