Installing Additional Coolant Pump

WARNING: This page is about a different variant/trim than selected.

Fit additional coolant pump holder.

1.1 Position additional coolant pump holder -1- . fit double screws securing holder to chain housing cover -3- and tighten them.
> Tightening torque 9 Nm (6.6 ftlb.)

1.2 Fit and tighten screws securing additional coolant pump to holder -2- .

> Tightening torque 1.5 Nm (1.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

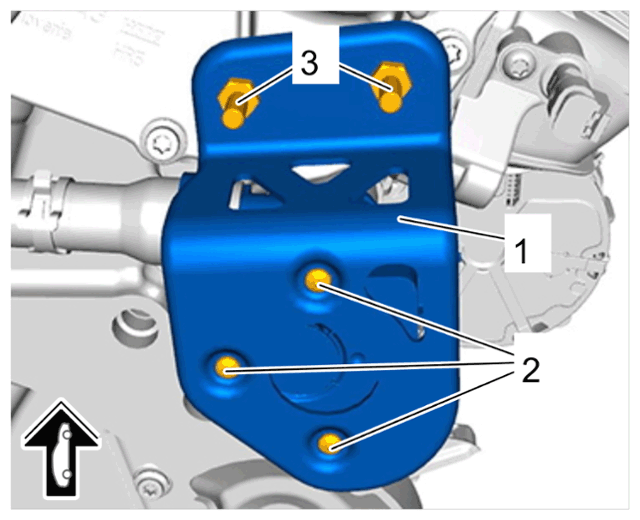

Additional coolant pump (right cylinder bank)

Secure the coolant line.

2.3 Fit and tighten nut -3- .

> Tightening torque 9 Nm (6.6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

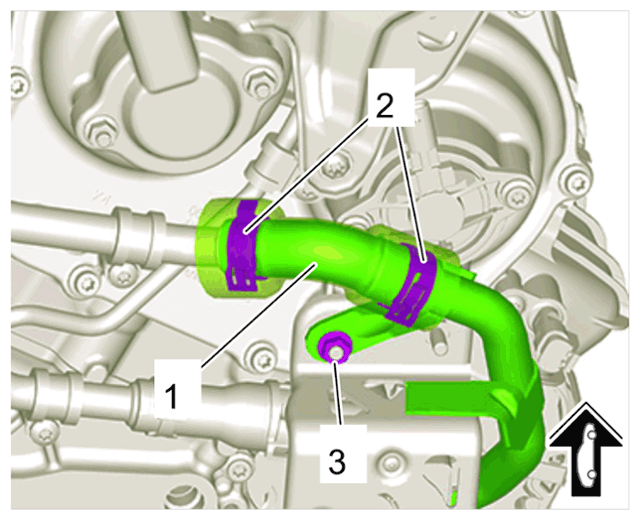

Upper coolant line
