Removing Coolant Reservoir

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

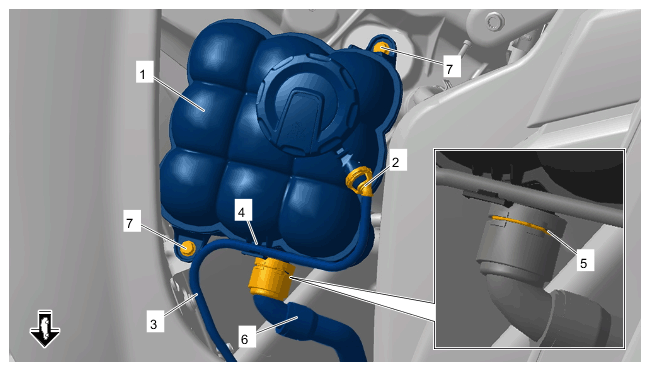

Coolant reservoir

1. 1.1  Lift up safety clip -5-  using a suitable tool and disconnect coolant line -6-  .
2. 1.2  Unclip coolant return line -3-  from holder -4-  on the reservoir -1-  .
3. 1.3  Press release buttons for coolant line connection -2-  on both sides and pull coolant line -3-  off the reservoir -1-  .
4. 1.4  Unscrew screws on coolant reservoir -7-  .
5. 1.5  Lift up coolant reservoir and release and disconnect electric plug connection on the floor of the coolant reservoir.
6. 1.6  Remove coolant reservoir -1-  .
