Removing (Lower) Cooling-Air Flaps

WARNING: This page is about a different variant/trim than selected.

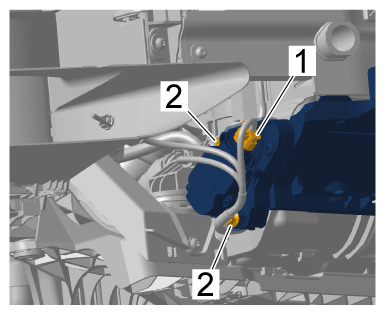

  1. Disconnect electric line on motor for cooling-air flaps.
    G15211048Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    1. 1.1  Release electric plug connection -1-  and disconnect it.
    2. 1.2  Unclip line bracket -2-  .

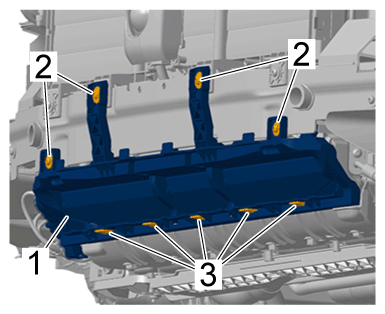

  2. Remove lower cooling-air flaps -1-  .
    G15211049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cooling-air flaps, lower

    1. 2.1  Unscrew screws -2-  .
    2. 2.2  Unclip and remove (lower) cooling-air flaps -1-  from holders -3-  .
