Removing Cooling Air Flaps (Top)

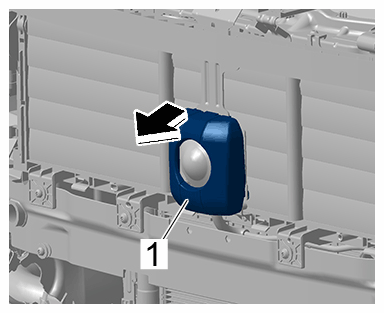

1. 1.1 -1-  Unclip -Arrow-  cover and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

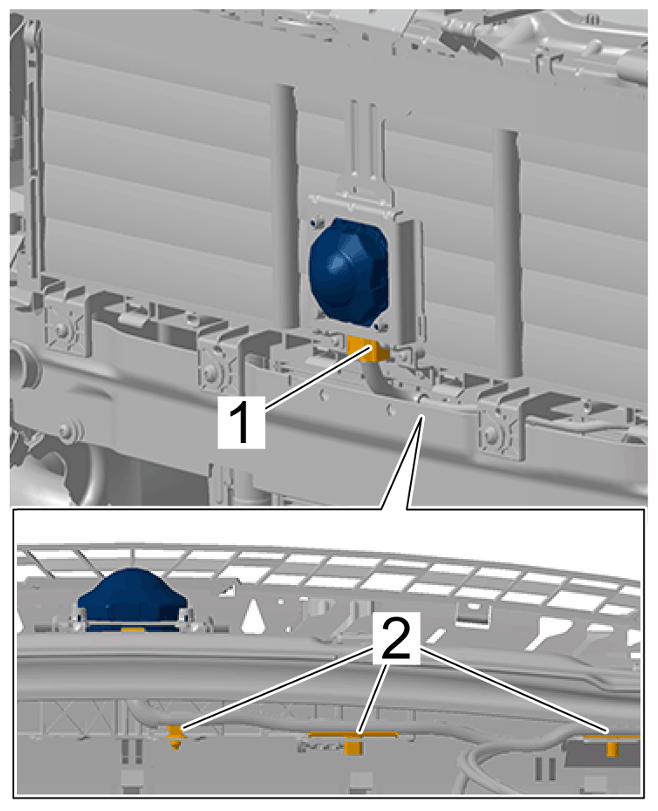

2. 1.2  Release electric plug connection -1-  and disconnect it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electrical connector

3. 1.3  Unclip wire harness from (upper) cooling-air flaps -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness

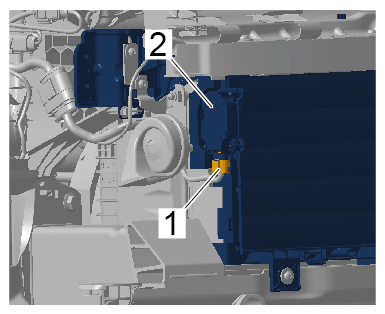

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on drive mechanism for (upper) cooling-air flaps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

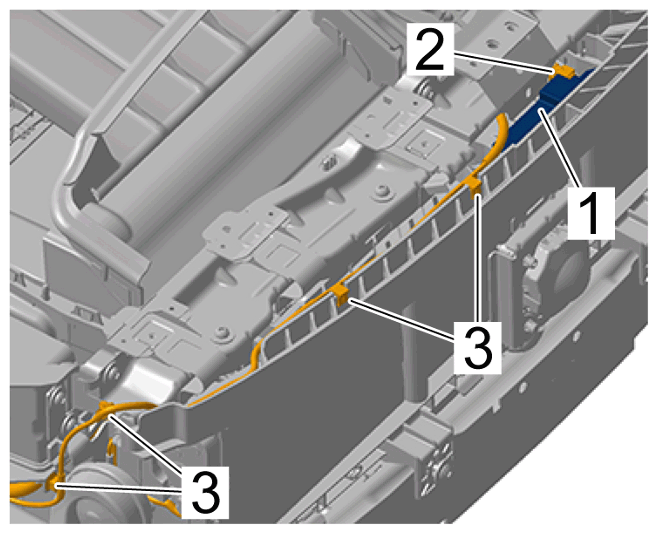

Antenna wire harness

1. 3.1  Release electric plug connection -2-  and disconnect it.
2. 3.2  Unclip antenna -1-  from cross member -3-  .
3. 3.3  Guide antenna -1-  out of the cross member and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness for antenna

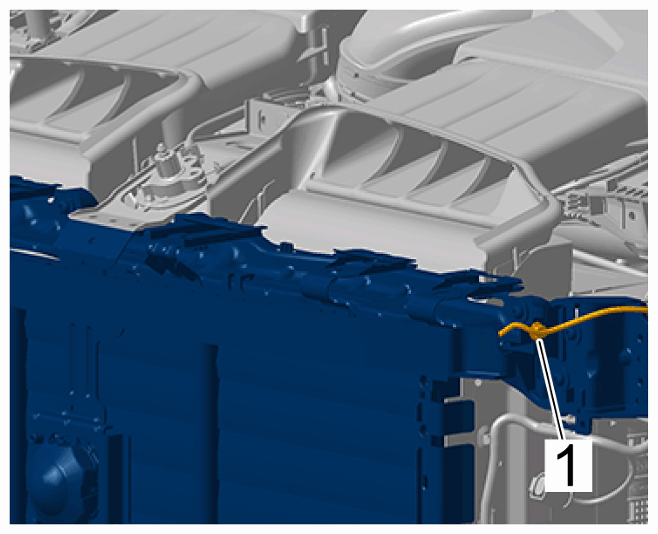

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on release element

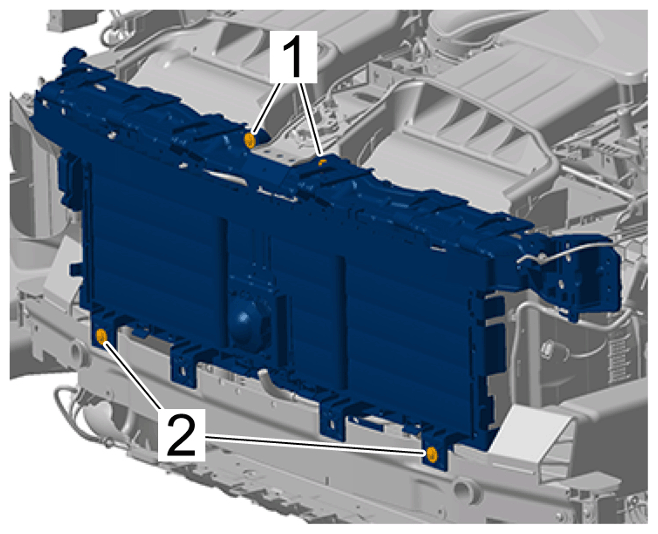

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on bumper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

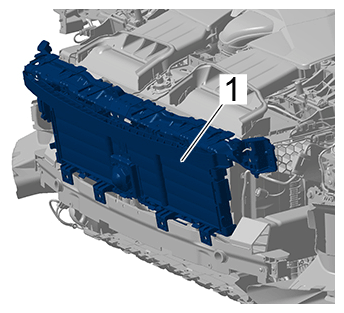

Cooling-air flaps (upper)
