Removing Motor Cooling-Air Flaps
WARNING: This page is about a different variant/trim than selected.

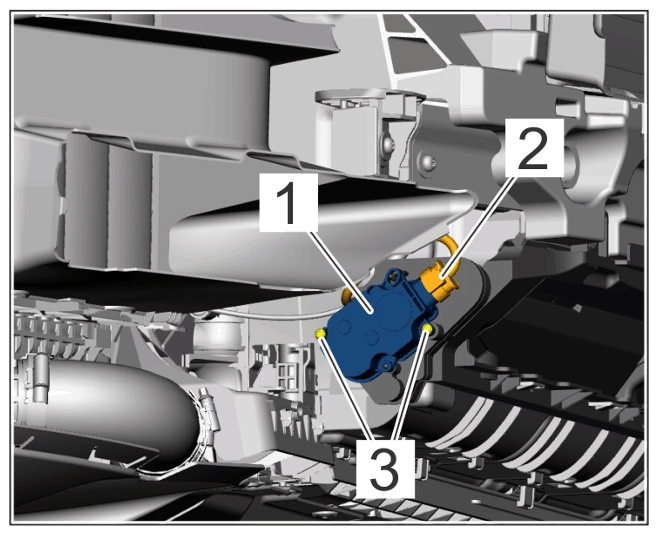

- Remove motor for cooling-air flaps -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Motor for cooling-air flaps, lower
- 1.1
Unlock and pull off cable plug -2-
.
- 1.2
Unscrew screws -3-
.
- 1.3
Take off engine for cooling-air flaps -1-
.
