Removing Cooling Fan Housing

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
- → Avoid contact with hot fluid.
- → Wear personal protective gear.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

Unscrew screws -1- , guide release element -2- up and out and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

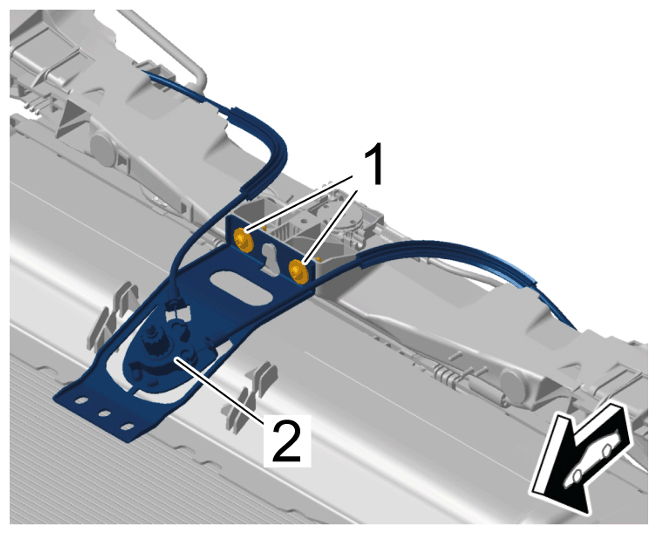

Release element
Remove radiator cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

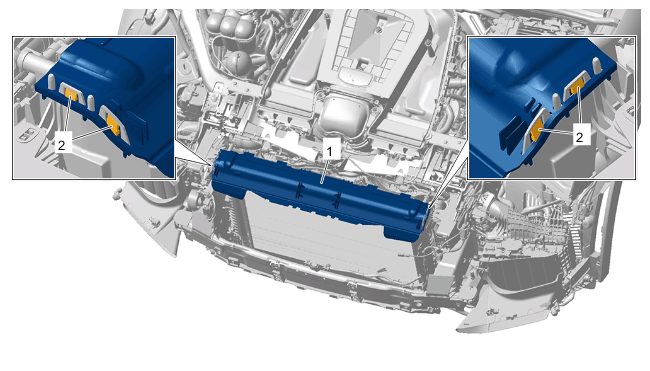

Radiator cover
1. 2.1 Press in clips -2- and pull radiator cover -1- up and off.
Release and disconnect electric plug connections for radiator fans -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

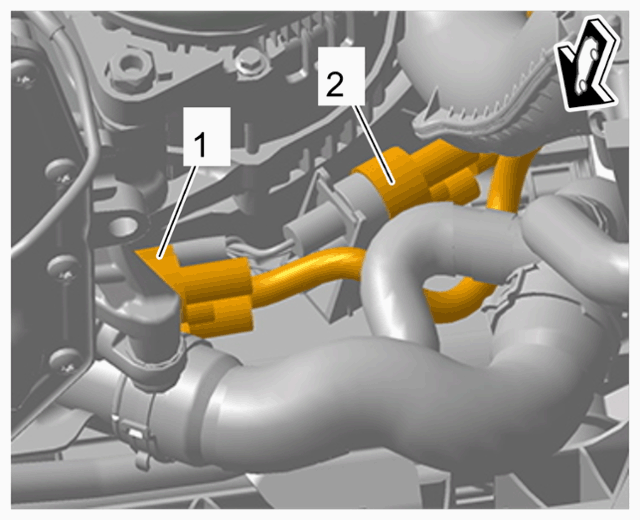

Electric plug connections for radiator fans

Information

You will need a second mechanic to help you with this step.
Loosen cooling fan housing -1- from the mountings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

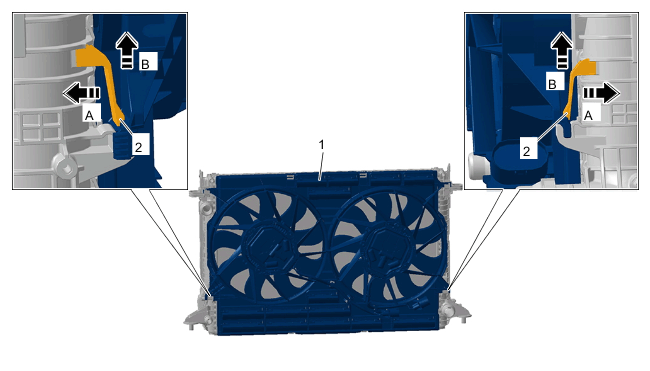

Cooling fan housing
1. 4.1 Release the two locking lugs -2- at the same time on the side of the radiator -arrow A- and lift cooling fan housing -1- up out of the guide -arrow B- .
Relieve pressure in the cooling system.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

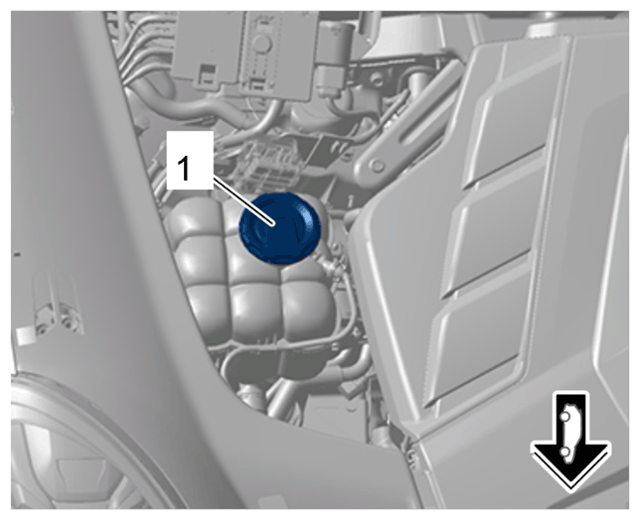

Coolant reservoir cap
1. 5.1 Carefully open cap -1- on the coolant reservoir and then close it again.
Release and disconnect vent line -1- and collect emerging coolant using suitable cleaning aids.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

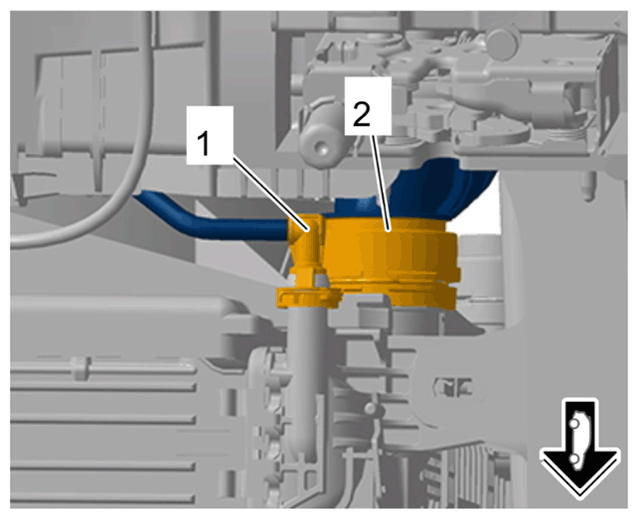

Coolant connections at top of radiator
1. 6.1 Close off line connections using suitable stoppers.
  Information

  You will need a second mechanic to help you with this step.
Remove cooling fan housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

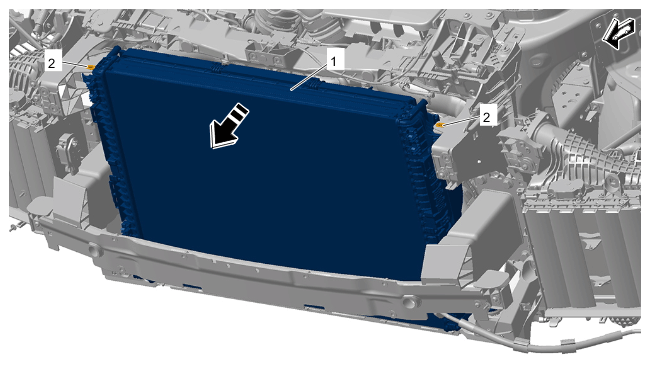

Removing cooling fan housing
1. 7.1 Release retaining clips for radiator -2- and remove upwards.
2. 7.2 Get a second mechanic to carefully pull the radiator -1- forward -Arrow- to make more room for removing the cooling fan housing.
3. 7.3 Guide cooling fan housing up and out.
