Removing Camshaft Actuator
NOTIFICATION
Timing not set correctly
- Risk of engine damage
- Rough running engine
- Loss of engine power
- Do not use force when fitting the staking tool.
- Make sure that the gap is equal on both sides.
- When inserting the staking tools, do not use force to turn the camshafts against any resistance.
- The engine must be exactly at top dead center.
- The opposite cylinder must be at ignition TDC.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- Protect components from dirt and contamination.
- Clean or replace dirty components.
Information
Never use the camshaft clamps -T40331- as a counterhold tool for loosening and tightening the camshaft controllers.

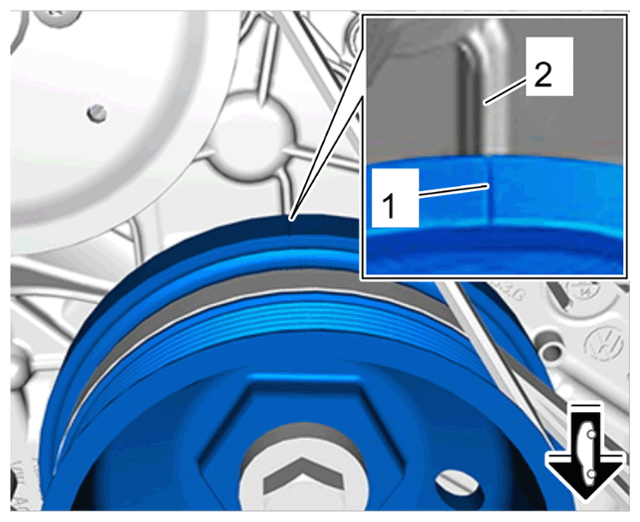

- Turn the crankshaft until the marking on the vibration damper -1-
is positioned at TDC -2-
.
TDC marking on vibration damper

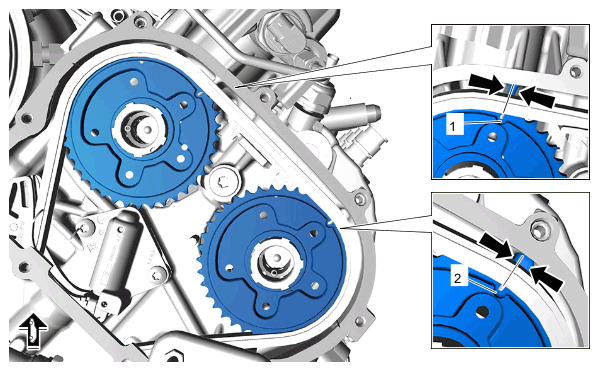

- The markings on the camshaft actuators (cylinder bank 1) -1 and 2-
must be aligned with the reference points -Arrows-
on the camshaft housing. Turn the crankshaft further by one turn if necessary.
Markings on camshaft actuator (cylinder bank 1)

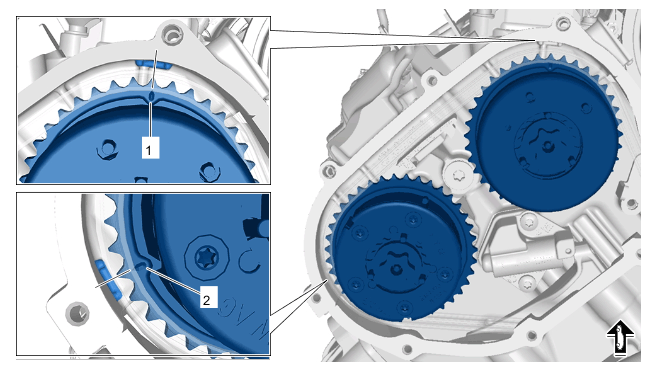

- The markings on the camshaft actuators (cylinder bank 2) -1 and 2-
must be aligned with the reference points -Lines-
on the camshaft housing.
Markings on camshaft actuator (cylinder bank 2)
- Remove stoppers on camshafts -1-
.

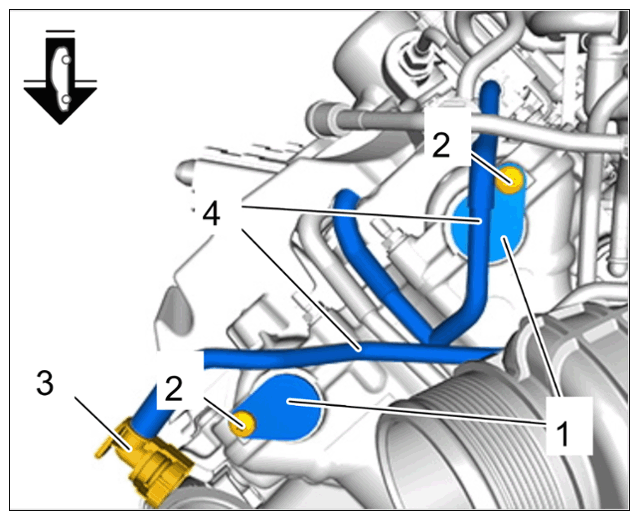

Stoppers on camshafts
- 4.1 Release and disconnect quick connector -3- .
- 4.2 Move vacuum hoses -4- aside so that the stoppers on the camshafts -1- are accessible.
- 4.3 Unscrew and remove screws -2- .
- 4.4 Remove stoppers -1- .

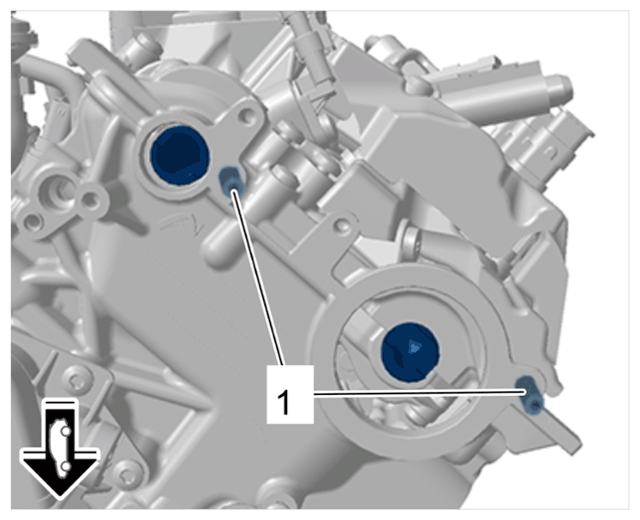

- Screw adapter T40331/2 -1-
from tool set > T40331 - camshaft clamps
into the camshaft housing on cylinder bank 1 and tighten to 9 Nm (6.5 ftlb.)
.

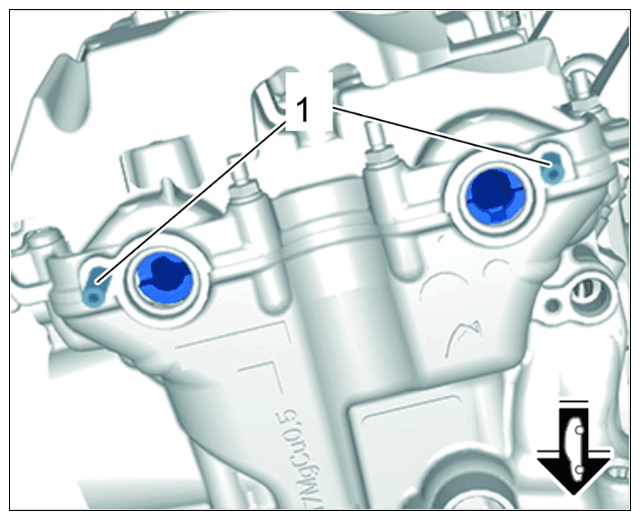

Adapter on camshaft housing, cylinder bank 1
- Screw adapter T40331/3 -1-
from tool set > T40331 - camshaft clamps
into the camshaft housing on cylinder bank 2 and tighten to 9 Nm (6.5 ftlb.)
.
Adapter on camshaft housing, cylinder bank 2
Information
The camshaft clamp must be easy to insert and must not be fitted using a striking tool.
Information
It may be necessary for another person to carefully position the camshafts at the actuators using > T90001 - counterhold tool and > VAS 261 001 - Ring wrench insert, a/f 41 .
- Install > T40331 - camshaft clamps
.
- 7.1
> T40331 - Camshaft clamp
must be inserted.

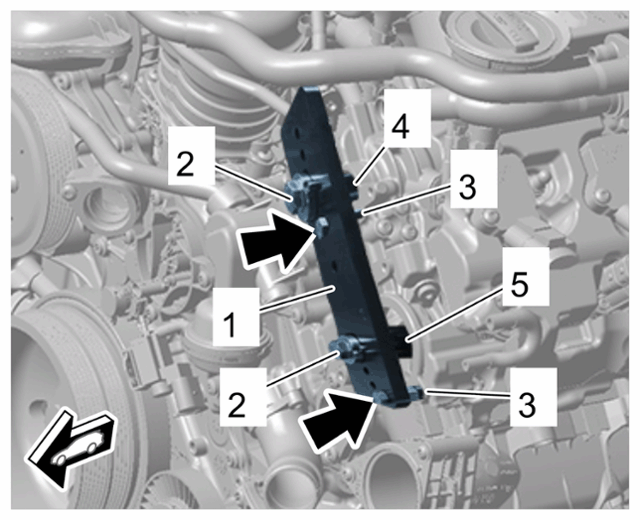

Cylinder bank 1 > Camshaft clamps on cylinder bank 1

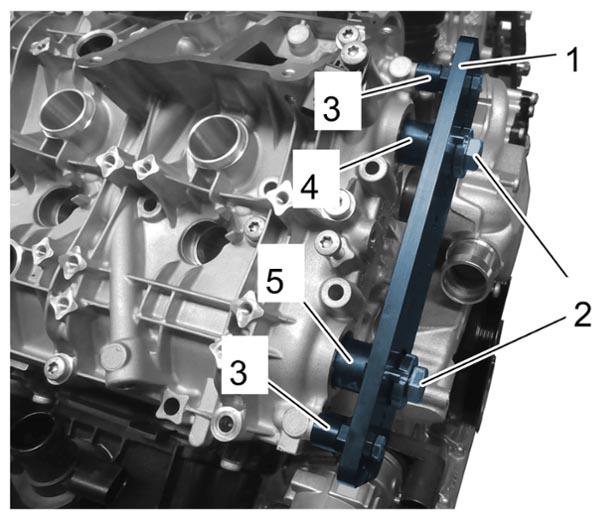

Camshaft clamps on cylinder bank 1
1 T40331/1 - The letter "A" must be facing you. 2 T40331/9 3 T40331/2 4 T40331/5 - Outlet camshaft 5 T40331/4 - Intake camshaft - 7.1.1 T40331/9 -1- must be screwed in by hand. Tighten screws on the camshaft clamps -Arrows- to 9 Nm (6.5 ftlb.) .
- 7.2
Cylinder bank 2
Camshaft clamps on cylinder bank 2
1 T40331/1 - The letter "B" must be facing you. 2 T40331/9 3 T40331/3 4 T40331/5 - Outlet camshaft 5 T40331/8 - Intake camshaft - 7.2.1 T40331/9 -2- must be screwed in by hand. Tighten screws on the camshaft clamps -Arrows- to 9 Nm (6.5 ftlb.) .
- 7.1
> T40331 - Camshaft clamp
must be inserted.
- Secure the crankshaft.

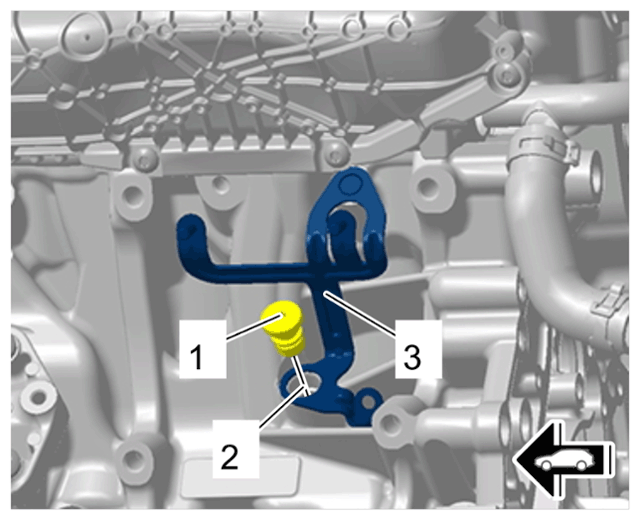

Screw plug for crankshaft
- 8.1 Unscrew screw plug -1- .
- 8.2 Remove holder for vacuum reservoir -3- .
- 8.3 > T40069 - Locking pin must be screwed into the bore -2- by hand. Turn the crankshaft back and forth slightly to do this, if necessary.
- 8.4 > T40069 - Locking pin must be tightened to 20 Nm (15 ftlb.) .
- > VAS 261 001 - Ring spanner insert, a/f 41
with > T90001 - counterhold tool
must be fitted on the camshaft actuators.

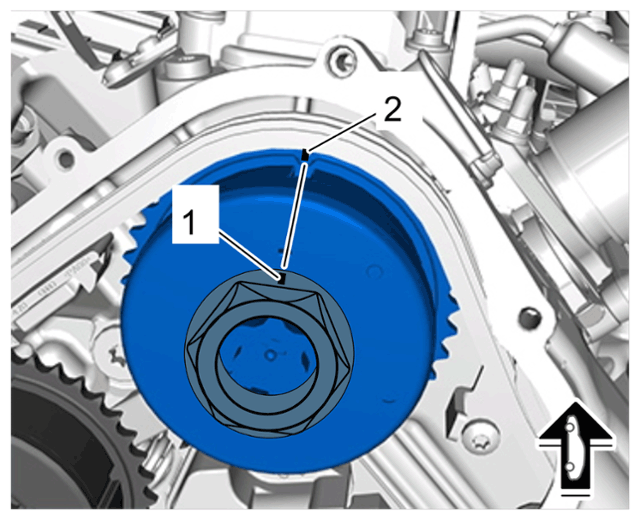

The > T90001 - counterhold tool can only be inserted at one position. To do this, the markings -1 and 2- on the camshaft actuator and chain housing must be aligned.
Hook wrench T90001 on camshaft actuator
- Loosen camshaft actuator -1-
.

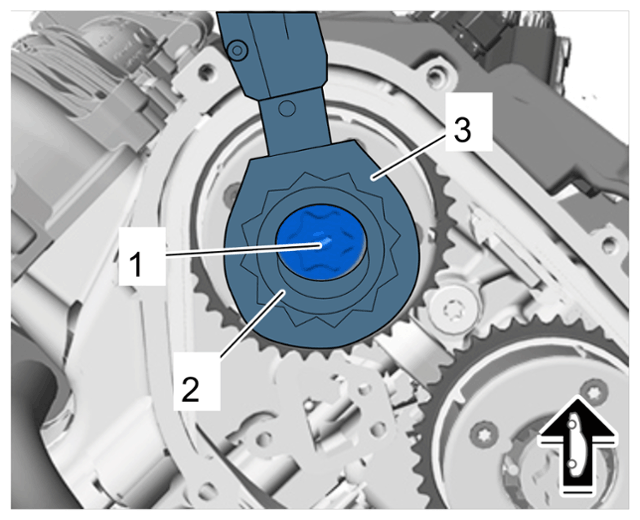

Camshaft actuator
- 10.1
Counter the camshaft actuator -1-
using > VAS 261 001 - ring spanner insert, a/f 41 -3-
and > T90001 - counterhold tool-2-
and loosen using > T90000 - socket E24
.
Do not unscrew the camshaft actuator from the camshaft.
- 10.2 Mark camshaft actuator and camshafts for re-installation using a colored marker.
- 10.1
Counter the camshaft actuator -1-
using > VAS 261 001 - ring spanner insert, a/f 41 -3-
and > T90001 - counterhold tool-2-
and loosen using > T90000 - socket E24
.
- Lock both chain tensioners.

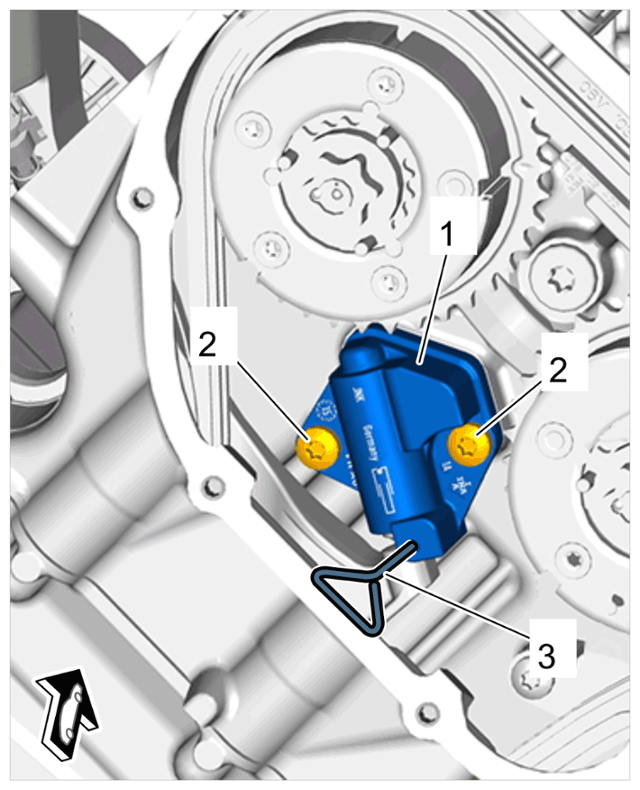

Fixing device for chain tensioner
Information
The chain tensioner piston is oil-damped and can only be pressed back slowly and with constant pressure.
- 11.1 Press the chain tensioner piston -1- back fully using a screwdriver.
- 11.2 Lock the chain tensioner -1- using > T03006 - locking pin-3- .
- Unscrew control valves and remove camshaft actuator from the camshaft and out of the timing chain.
Make sure that the timing chain does not fall into the chain housing.
- Secure the timing chain to prevent it from falling down.
