Removing Cylinder Head Cover - Right Cylinder Bank

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

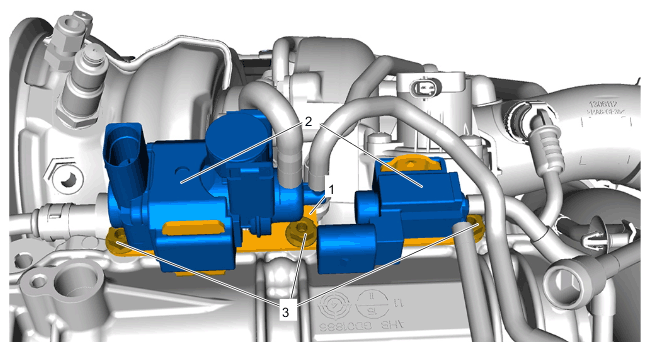

Holder for solenoid valves

1. 1.1  Pull solenoid valves -2-  off the holder -1-  and set them aside.
2. 1.2  Unscrew nuts on holder -3-  .
3. 1.3  Remove holder -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

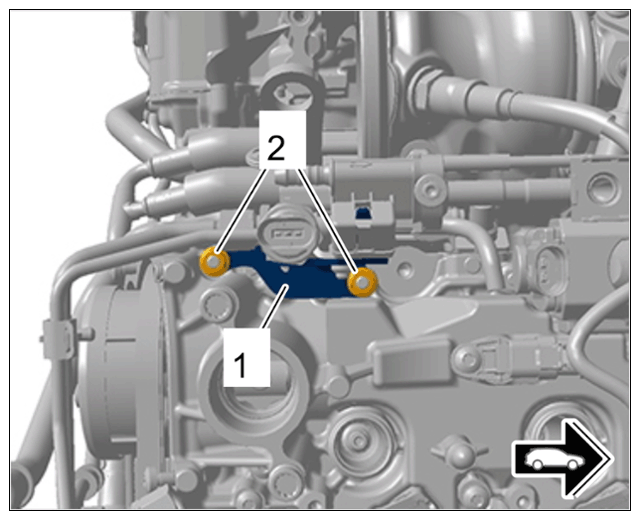

Holder on right cylinder bank

1. 2.1  Unscrew nuts on holder -2-  .
2. 2.2  Remove holder -1-  from threaded bolts and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

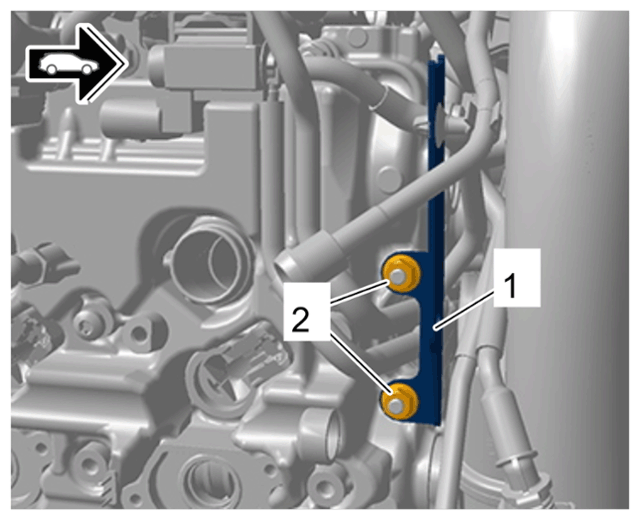

Line bracket on right cylinder bank

1. 3.1  Unscrew nuts on line bracket -2-  .
2. 3.2  Remove line bracket -1-  from threaded bolts and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

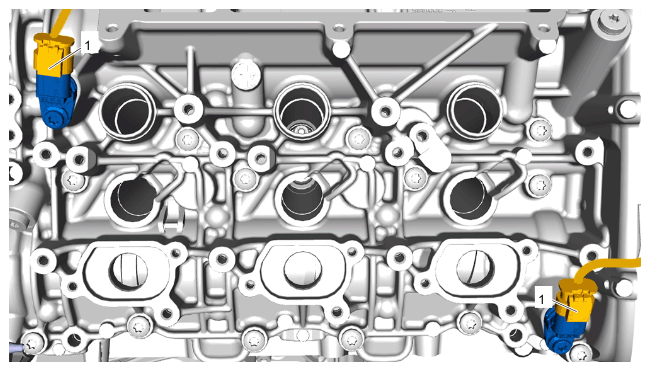

Electric plug connections for camshaft sensors

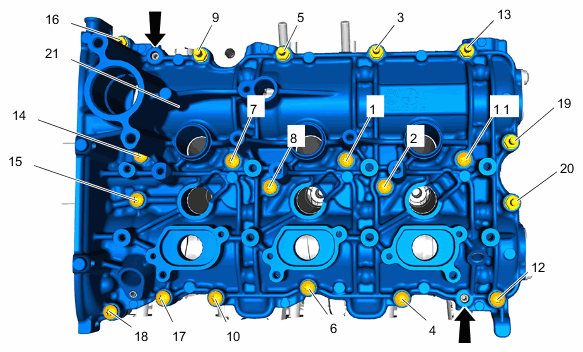

Fig 1: Chain Housing Cover On Right Cylinder Bank Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain housing cover on right cylinder bank

1. 5.1  Unscrew screws on cylinder head cover -1 to 20-  .
2. 5.2  Screw two screws (M8 x 25)  into the threaded bores -Arrows-  by hand.
3. 5.3  Tighten screws alternately by half a turn each until the cylinder head cover -21-  is loosened.
4. 5.4  Remove cylinder head cover -21-  .
